MetalsTek Engineering is a professional Sputtering Target supplier. Bismuth Sputtering Target is available in various shapes, purities, dimensions. We are your one-stop source of finding sputtering targets for sale.
Material: Bismuth, 99.9%~99.999%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Oxide, 99.9%~99.99%
Properties: 8.9g/cc Density, 817 °C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer

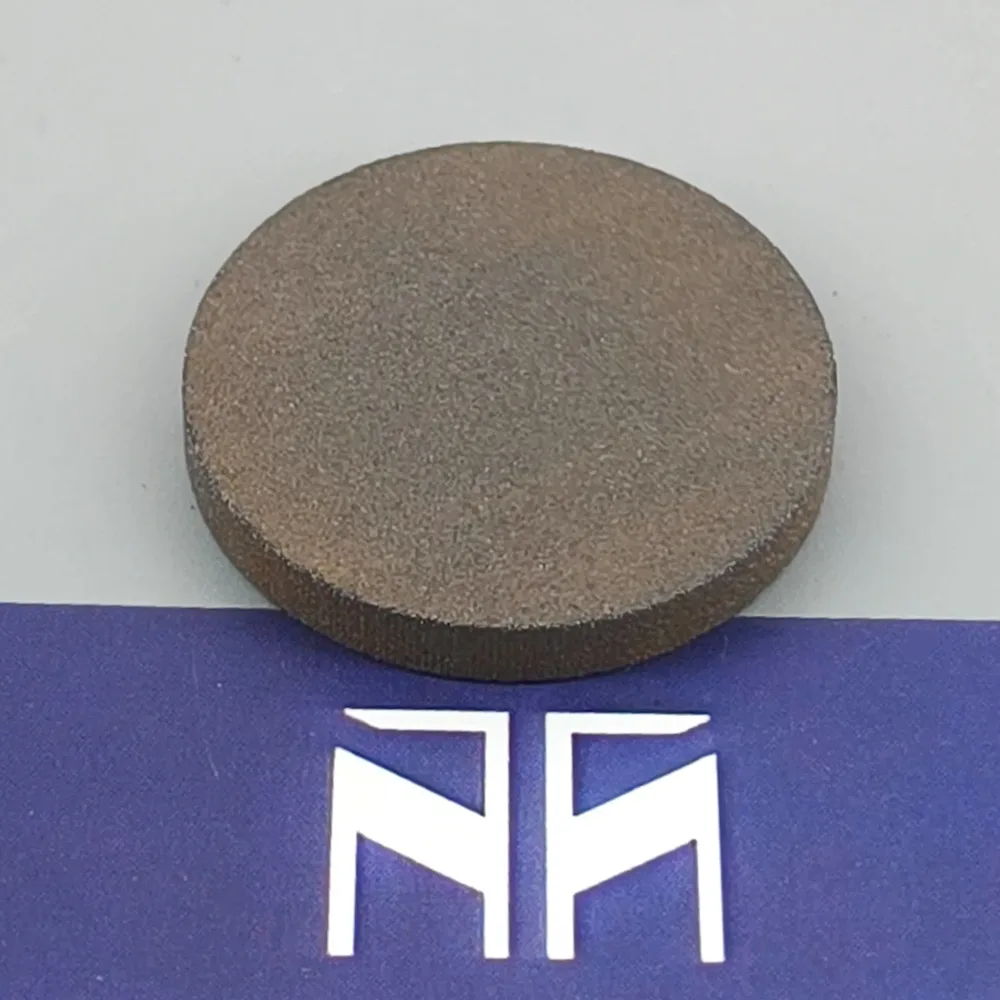

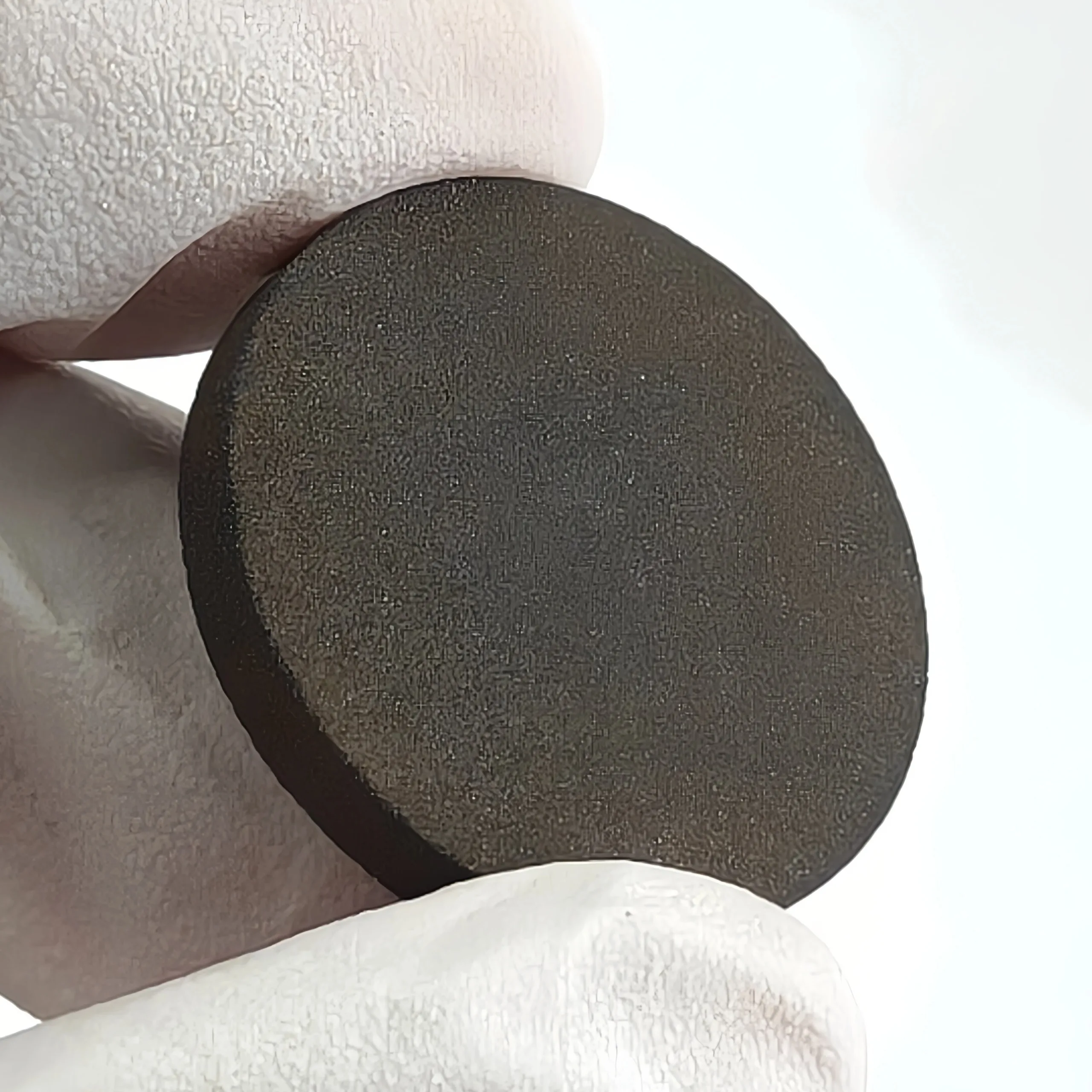

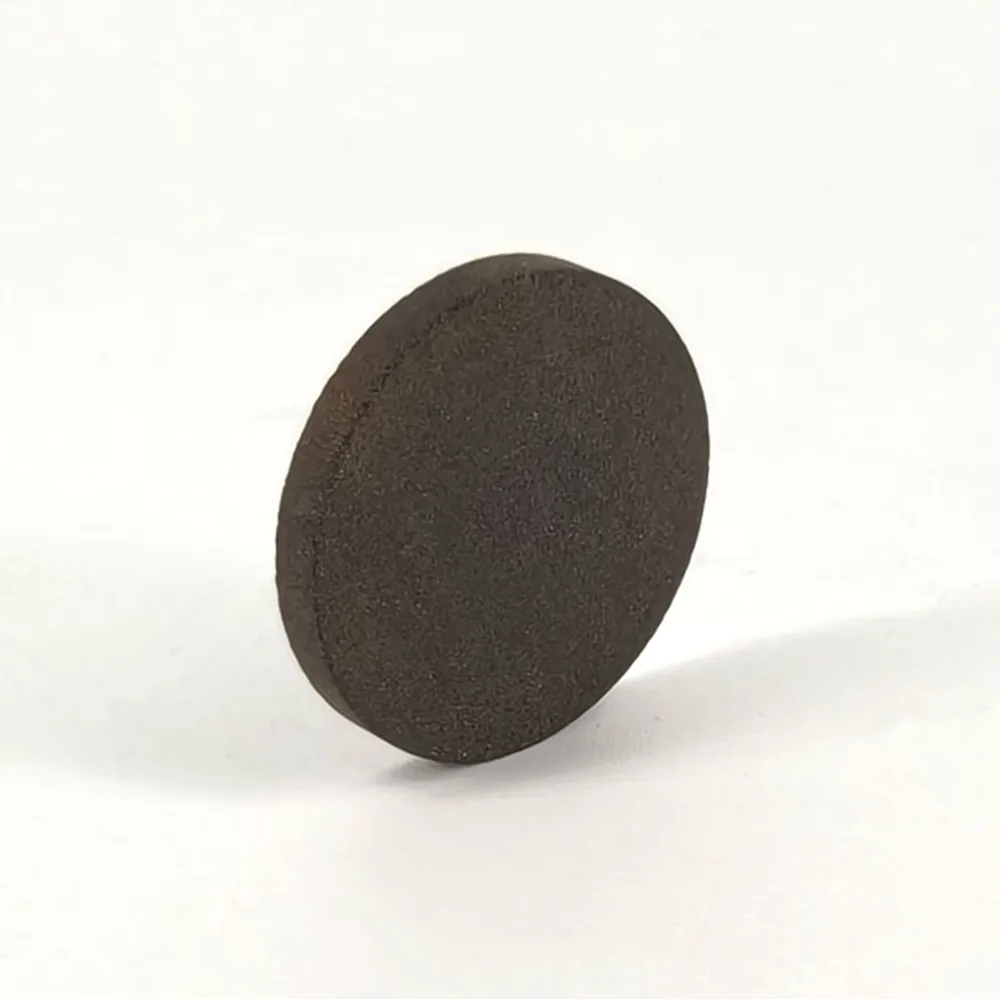

Material: Bismuth Ferrite, 99.9%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Iron Oxide, 99.9%, 99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Titanate, 99.9%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Calcium Ferrite, 99.9%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Sulfide, 99.9%~99.99%, 7.7g/cc
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer

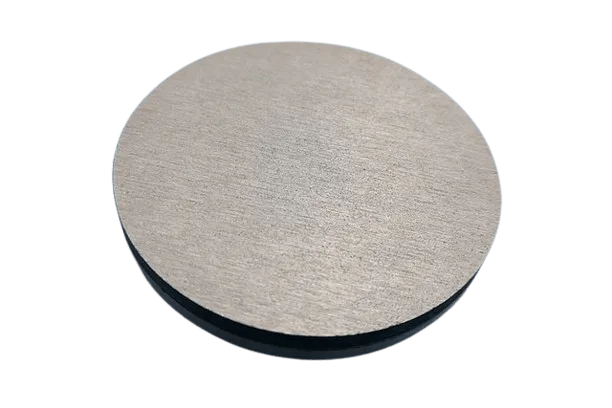

Material: Bismuth Selenide, 99.9%~99.999%
Properties: 9.2g/cc Density, 2,000°C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Telluride, 99.9%~99.999%
Properties: 800.76 M.W. 585°C M.P. 7.64g/cc Density
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Manganate, 99.9%~99.999%
Properties: Black, 7.0g/cc Density, 6.5 pH Value
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Antimony, 99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Antimony Selenide, 99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Antimony Telluride, 99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Bismuth Vanadate, 99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: BaBiO3, Bi2DyFe4GaO12, Bi(1-x)LaxFeO3, Bi1.5Lu1.5Fe4GaO12, Ce2.2Bi0.8Fe5O12
Purity: Manganate, 99.9%~99.999%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Bonding: Indium, Elastomer
Bismuth Sputtering Targets are essential components used in physical vapor deposition (PVD) processes, specifically in sputtering techniques that deposit bismuth thin films onto substrate surfaces. Bismuth, a post-transition metal with an atomic number of 83, possesses unique properties that make it valuable across various industries. The targets are typically manufactured with high levels of purity to ensure the quality and integrity of the deposited thin films. They are utilized in semiconductor manufacturing, optoelectronics, and research applications, where bismuth thin films provide desirable properties such as high electrical resistance, low thermal conductivity, and excellent diamagnetic and superconducting properties at low temperatures. Bismuth Sputtering Targets allow the deposition of thin films with precise thickness, uniformity, and composition, contributing to the development of materials science and technology.
Material Type | Bismuth | Theoretical Density | 9.75 g/cc |
Symbol | Bi | Z Ratio | 0.79 |
Atomic Weight | 208.9804 | Sputter | DC |
Atomic Number | 83 | Max Power Density | 10* (Watts/Square Inch) based on using a sputter up orientation with optimal thermal transfer |
Appearance | Lustrous Reddish White, Metallic | ||
Thermal Conductivity | 8 W/m.K | Type of Bond | Indium, Elastomer |
Melting Point | 271.5°C | Export Control | 1C229 (ECCN) |
Coefficient of Thermal Expansion | 13.4 x 10-6/K | Comments | Resistivity high. Low Melting Point materials not ideal for sputtering. |

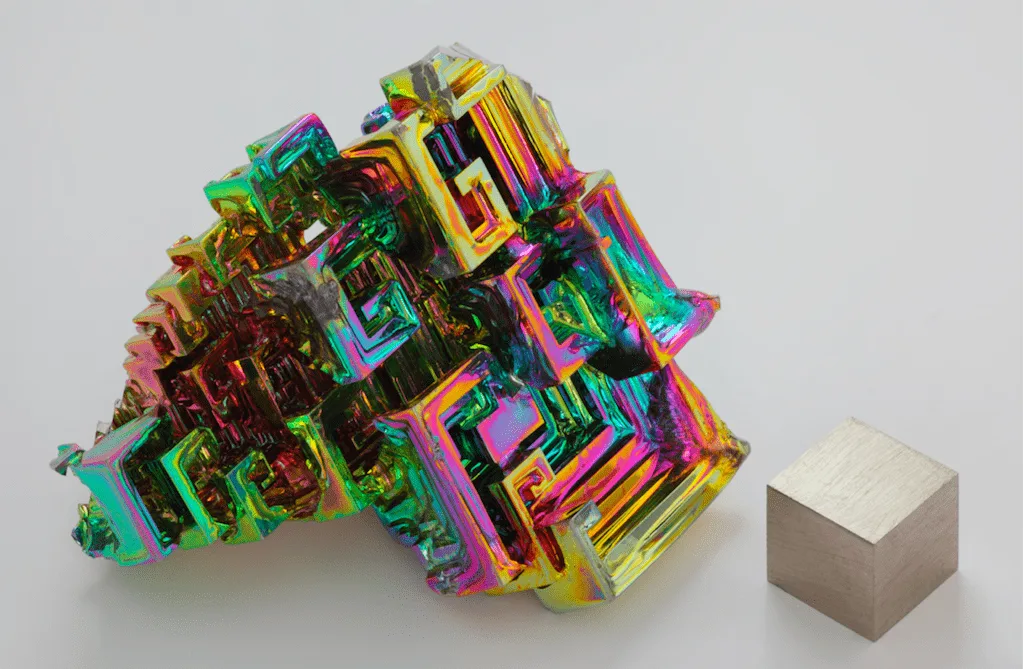

The versatile use of Bismuth and its related Sputtering Targets across several industries such as semiconductors, optoelectronics, electronics, glass coatings, wear-resistant materials, and decorative applications:
Our Bismuth Sputtering Targets are vacuum sealed and clearly labeled externally to ensure efficient identification and quality control. We take great care to prevent any damage during storage or transportation.
