Molybdenum Sheet, Foil & Strip

Flat molybdenum products for furnace components, electrical parts and custom fabrication. Compare the catalogue forms, then define thickness, usable dimensions and material condition for your application.

Choose the Flat Product Form

Molybdenum Sheet

Flat stock and cut blanks; specify material condition and usable dimensions.

Molybdenum Disc

Circular blanks; include diameter, thickness, flatness and edge requirements.

Molybdenum Foil

Define thickness numerically and include the required supplied length.

Molybdenum Strip

Narrow strip and roll enquiries; include width, winding and edge requirements.

Published Sizes & Material Options

Product / parameterPublished option / requirement
Molybdenum sheetThickness 0.03–40 mm × width 10–800 mm × length 10–3,500 mm.
Molybdenum discDiameter ≤1,500 mm × thickness 0.03–40 mm. Confirm the diameter/thickness combination and cut-blank requirements.
Molybdenum foilThickness 0.1–1.0 mm × width 10–500 mm. Required length to be specified.
Molybdenum stripThickness 0.03–0.08 mm × width 2–6 mm. Roll length to be specified.
Material optionsPublished pure-Mo purity: sheet/disc 99% or ≥99.95%; foil/strip ≥99.95%. Specify TZM chemistry and condition separately.
Published density span9.8–10.2 g/cm³ across catalogue material states. Confirm the value for the offered product.
Surface descriptionsRolled, cold-rolled, turned or ground, as applicable to the selected product form.
Flat-product standardASTM B386/B386M is the scope reference for plate, sheet, strip, foil and ribbon. Agree edition, grade, condition and acceptance requirements.

These dimensions are catalogue enquiry envelopes, not confirmation that every combination is available. Final dimensions, tolerances, grade and documentation must be agreed for the quoted product. Form names can overlap; numerical dimensions govern the enquiry.

Define the Blank and the Next Operation

Material & Condition

State pure-Mo purity and impurity requirements, or a separate TZM specification. Identify the working or heat-treatment condition and any required rolling-direction marking.

Dimensions & Acceptance

Include thickness tolerance, usable width and length, flatness, edges and surface condition. For discs or cut blanks, attach the drawing revision and any hole pattern.

Fabrication & Supply

Identify cutting, punching or forming to be included. Send both blank and component drawings when needed, and state sheet, cut-length or roll packing requirements.

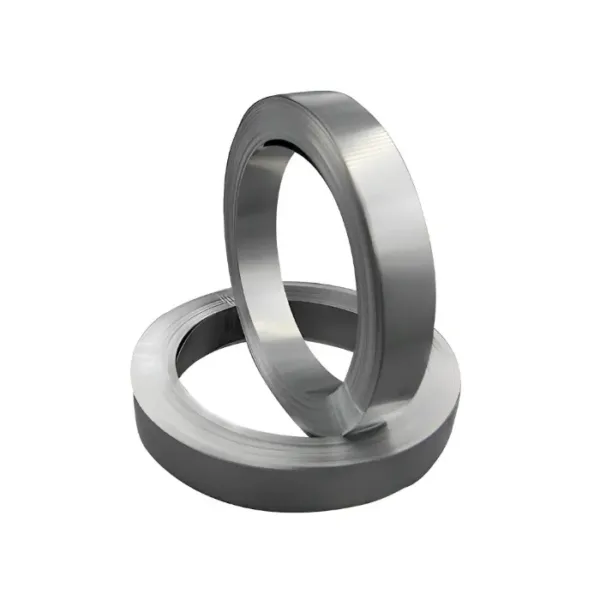

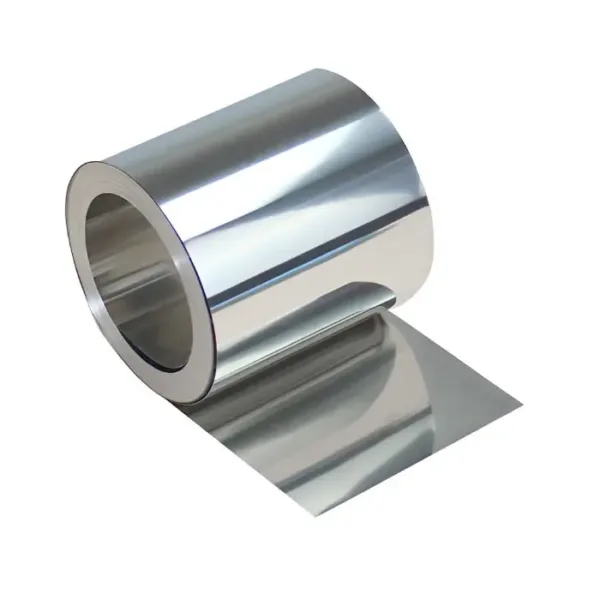

Foil & Strip Product Views

Molybdenum Sheet & Foil FAQ

Send the material, condition, thickness, width, length or disc diameter, tolerances, quantity and a drawing for cut or machined features.

No. Published dimensions cover different catalogue configurations. Confirm the actual combination, manufacturing and inspection requirements during quotation.

ASTM B386/B386M covers molybdenum flat-product forms. State the required edition, grade, condition and acceptance documents. This scope reference is not a declaration of batch certification.

Include the blank and finished-part drawings, intended operations, rolling-direction requirements and acceptance criteria. Agree the material condition and any forming review or trial for that geometry.

Specify sheet or roll format, quantity, edge and surface protection, identification and cleanliness requirements. Agree any special handling or inspection records before ordering.

Related Resources

Specifying Molybdenum Sheet & Foil

Thickness tolerances, delivery condition, rolling direction and acceptance records to include in a flat-product RFQ.

Molybdenum and TZM Grade Selection

A guide to molybdenum grade and alloy terminology before agreeing the material basis for your enquiry.

Prepare Your Flat-Product Inquiry

Send the material grade, condition, thickness, width, length or disc diameter, quantity and tolerances. Include surface, packing and documentation requirements.
