Aluminum Sputtering Targets

MetalsTek Engineering is a leading manufacturer and supplier of Aluminum and Aluminum related Sputtering Targets. We can provide high purity Aluminum Sputtering Targets with short lead times and competitive prices.

Aluminum Sputtering Target, Al

Aluminum Sputtering Target, Al

Material: Aluminum, 99.9%~99.9995%

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

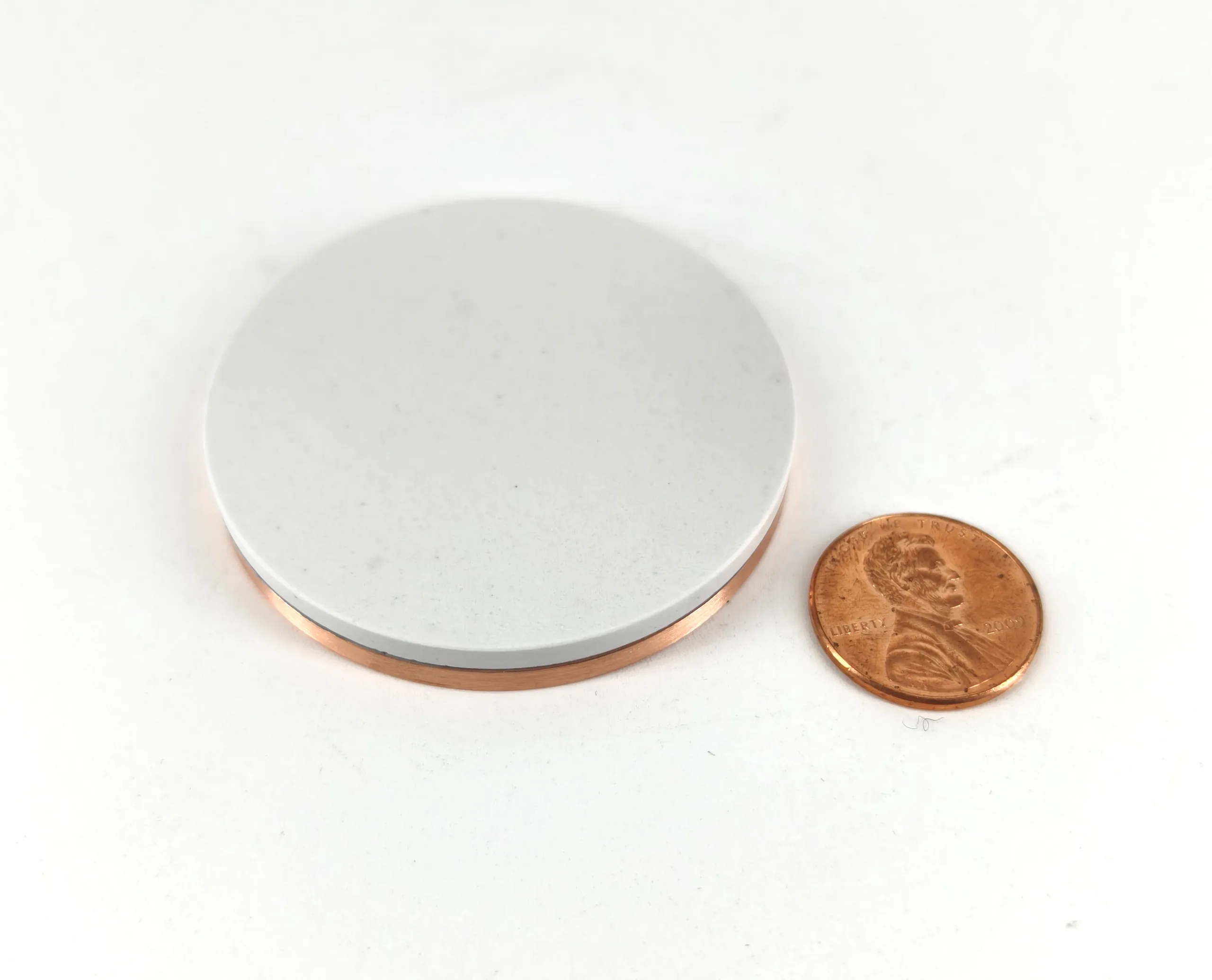

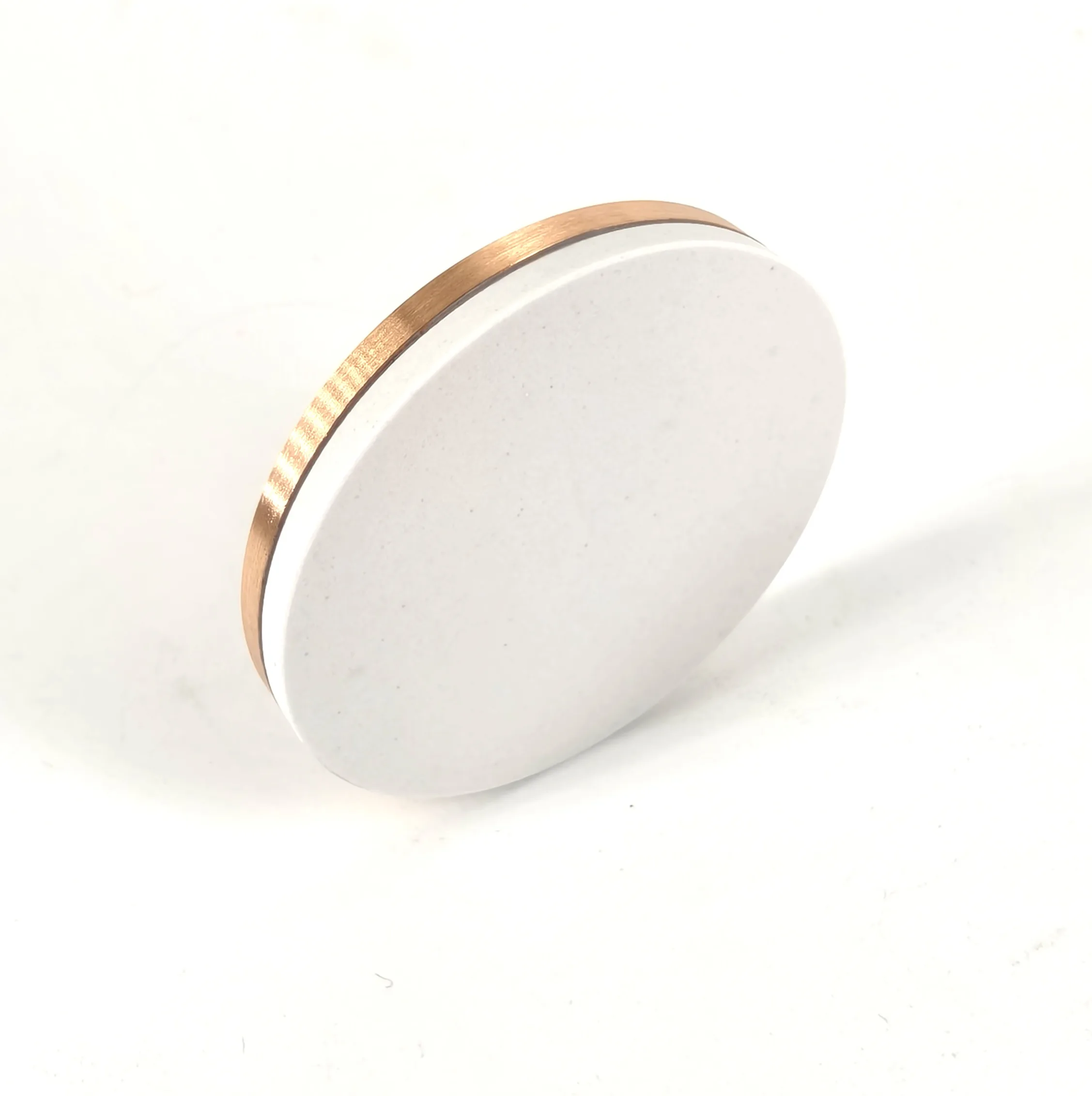

Aluminum Oxide Sputtering Target, Al2O3

aluminum-oxide-sputtering-target

Material: Aluminum Oxide, 99.5%

Compositions: Can be Customized

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Aluminum Chromium Sputtering Target, Al/Cr Cr/Al

Aluminum Chromium Sputtering Target

Material: Aluminum Chromium, 99.9%~99.9995%

Compositions: Can be Customized

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Aluminum Cobalt Sputtering Target, Al/Co Co/Al

Aluminum Cobalt Sputtering Target

Material: Aluminum Cobalt, 99.9%~99.95%

Compositions: Can be Customized

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Aluminum Copper Sputtering Target, Al/Cu Cu/Al

Aluminum Copper Sputtering Target

Material: Aluminum Copper, 99.9%~99.999%

Compositions: Can be Customized

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Aluminum Magnesium Sputtering Target, Al/Mg

Aluminum Magnesium Sputtering Target

Material: Aluminum Magnesium, 99.9%~99.99%

Compositions: Can be Customized

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Aluminum Nickel Sputtering Target, Al/Ni

Aluminum Nickel Sputtering Target

Material: Aluminum Nickel, 99.9%~99.99%

Compositions: Can be Customized

Properties: 7.5g/cc Density, 1,385°C M.P.

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Aluminum Scandium Sputtering Target, Al/Sc Sc/Al

Aluminum Scandium Sputtering Target

Material: Aluminum Scandium, 99.9%~99.95%

Compositions: Can be Customized

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Aluminum Titanium Sputtering Target, Al/Ti Ti/Al

Aluminum Titanium Sputtering Target

Material: Aluminum Titanium, 99.9%~99.99%

Compositions: Can be Customized

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Iron Aluminum Sputtering Target, Fe/Al

Iron Aluminum Sputtering Target

Material: Aluminum Titanium, 99.9%~99.99%

Compositions: Can be Customized

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Molybdenum Aluminum Sputtering Target, Mo/Al

molybdenum-aluminum-sputtering-target

Material: Molybdenum Aluminum, 99.9%~99.99%

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Tantalum Aluminum Sputtering Target, Ta/Al

tantalum-aluminum-sputtering-target

Material: Molybdenum Aluminum, 99.9%~99.95%

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Vanadium Aluminum Sputtering Target, V/Al

vanadium-aluminum-sputtering-target

Material: Vanadium Aluminum, 99.9%

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Zinc Aluminum Sputtering Target, Zn/Al

zinc-aluminum-sputtering-target

Material: Zinc Aluminum, 99.9%~99.99%

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Zirconium Aluminum Sputtering Target, Zr/Al

zirconium-aluminum-sputtering-target

Material: Zirconium Aluminum, 99.5%

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Aluminum Nitride Sputtering Target, AlN

Aluminum Nitride Sputtering Target, AlN

Material: Zirconium Aluminum, 99.5%~99.9%

Properties: ~3g/cc Density, 2,200 °C M.P.

Shape: Discs, Plates, Column Targets, Step Targets, Custom-made

Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”

      Block – Thick≥1mm * Width ≤12” * Length≤14”

Bonding: Indium, Elastomer

Description

Aluminum is a metal that is widely available and commonly found in everyday items such as kitchen utensils, streetlights, cars, and food packaging. It has a silvery-white appearance, is lightweight, and can be easily molded or bent without breaking. It is not magnetic, and has a density of 2.7 g/cc, a melting point of 660°C, and a vapor pressure of 10-4 Torr at 1,010°C. Aluminum has excellent thermal and electrical conductivity and forms a protective oxide layer that resists corrosion. Although it is moderately strong, its reactivity limits its presence as a free element in nature. Aluminum can be evaporated in a vacuum to create reflective coatings, which are used in automotive headlamps, telescopes, mirrors, toys, and packaging materials. It has a wide range of applications in industries such as aerospace, automotive lighting, OLED technology, and optics due to its unique properties and capabilities.

Aluminum Specifications

Material Type

Aluminum

Z Ratio

1.08

Symbol

Al

E-Beam

Excellent

Atomic Weight

26.9815386

Thermal Evaporation Techniques

Basket: W

Atomic Number

13

Crucible: TiB2-BN, BN

Color/Appearance

Silvery, Metallic

E-Beam Crucible Liner Material

FABMATE®, Intermetallic

Thermal Conductivity

235 W/m.K

Temp. (°C) for Given Vap. Press. (Torr)

10-8: 677

Melting Point

660 °C

10-6: 821

Coefficient of Thermal Expansion

23.1 x 10-6/K

10-4: 1,010

Theoretical Density

2.7 g/cc

Comments

Alloys W/Mo/Ta. Flash evap or use BN crucible.

Applications

Aluminum Sputtering Targets are crucial components used in the process of fabricating thin film coatings through the sputtering deposition technique. This method is widely used in various industries such as semiconductor, electronics, optical, and decorative industries. The use of aluminum sputtering targets is diverse, reflecting the material’s exceptional physical and chemical properties. For instance, its high conductivity, reflectivity, and corrosion resistance make it an ideal material for many applications. Here are some notable applications:



  1. Semiconductor Devices: Aluminum sputtering targets are used to deposit conductive layers in semiconductor devices. Aluminum’s excellent electrical conductivity makes it an ideal choice for interconnects, contacts, and electrodes in integrated circuits (ICs), contributing to the miniaturization and enhanced performance of electronic devices.
  2. Protective Coatings: Thin films deposited from aluminum targets can act as protective barriers, safeguarding surfaces against corrosion, oxidation, and wear. This application is critical in aerospace, automotive, and marine industries, where durability and longevity of components are paramount.
  3. Optical Coatings: Aluminum is known for its high reflectivity, making it suitable for creating mirrors and reflective optical components. Sputtered aluminum films are used in telescopes, laser components, and automotive headlights to improve light reflection and efficiency.
  4. Data Storage: Aluminum targets are employed in the production of thin films for magnetic media and hard disk drives. Aluminum coatings serve as a reflective layer or as part of the magnetic material stack, playing a crucial role in the storage and retrieval of data.
  5. Decorative Finishes: The bright, metallic finish of aluminum coatings is highly sought after in the decorative industry. Sputtering from aluminum targets allows for the deposition of thin, uniform coatings on various substrates, including plastics, metals, and ceramics, used in jewelry, automotive trim, and consumer electronics for aesthetic appeal.
  6. Solar Panels: Reflective coatings made from sputtered aluminum are utilized in solar panels and thermal collectors to enhance their efficiency. Aluminum’s ability to reflect sunlight contributes to the effective generation of solar power, a renewable energy source.
  7. Flat Panel Displays: In the manufacturing of liquid crystal displays (LCDs) and organic light-emitting diode (OLED) screens, aluminum sputtering targets are used to deposit electrodes and other conductive layers. These applications benefit from aluminum’s conductivity and compatibility with flexible substrates.
  8. Barrier Layers: Aluminum films can act as barrier layers to prevent the diffusion of materials or to protect sensitive components from environmental damage. This is particularly important in packaging, where aluminum coatings are applied to plastic films to extend the shelf life of food products by providing a barrier against oxygen, moisture, and light.



Packaging

Our Aluminum Sputtering Targets are clearly labeled externally to ensure efficient identification and quality control. We take great care to prevent any damage during storage or transportation.
