Titanium Metals

MetalsTek is a trusted supplier of Titanium Metals and has a large inventory available for short-time orders.

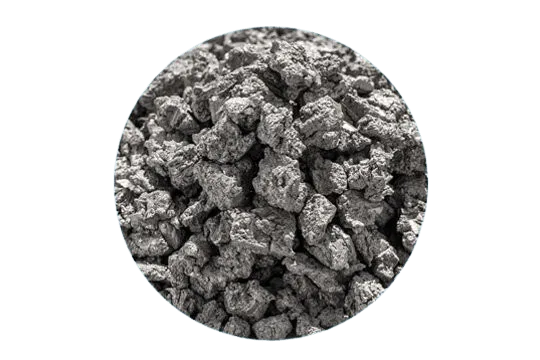

Sponge Titanium Grains and Ingots

Sponge_Titanium_Grains_and_Ingots

Material: Pure Titanium, Ti

Purity: 99%, 99.5%, 99.8%

Particle Size: 1~3mm Grains, 3-10mm Granules

Other: Can be Customized, Large Inventory

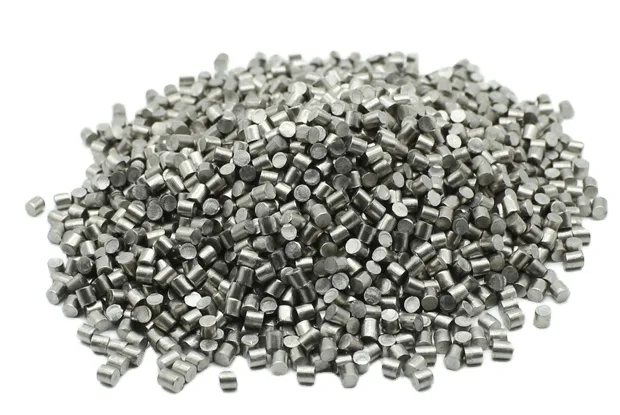

Titanium Pellets

Titanium Pellets

Material: Pure Titanium, Ti

Purity: 99.95%~99.999%

Particle Size: Dia2*2mm, Dia.3*3mm, Dia.6*6mm, or Customized

Other: Can be Customized, Large Inventory

Titanium Powders

Titanium Powders

Material: Pure Titanium, Ti

Purity: 99.5%~99.99%

Type: Micro Powder, Nano Powder, Spherical Powder

Other: Purity and Particle Size Can be Customized

Description

Titanium Metal is a versatile material widely used in various industries due to its unique properties. It is a lustrous and silvery-white transition metal with atomic number 22 and atomic weight 47.867. Titanium has a melting point of 1,660°C, a density of 4.5 g/cc, and a vapor pressure of 10-4 Torr at 1,453°C. It is known for its excellent corrosion resistance, biocompatibility, and strength-to-weight ratio, making it ideal for various applications. The primary forms of Titanium include Sheets, Plates, Wires, Rods, Tubes, Titanium Powder, Titanium Pellets, and Sponge Titanium.

Titanium Properties

TypePropertiesMetricEnglish
Descriptive PropertiesTitanium, Ti 100%100%
CAS Number7440-32-67440-32-6
PhysicalDensity 4.50 g/cc0.163 lb/in³
Mechanical PropertiesHardness, Brinell 7070
Hardness, Vickers 6060
Tensile Strength, Ultimate 220 MPa31900 psi
Tensile Strength, Yield 140 MPa20300 psi
Elongation at Break 54%54%
Modulus of Elasticity 116 GPa16800 ksi
Poissons Ratio 0.340.34
Electrical PropertiesElectrical Resistivity 0.0000554 ohm-cm0.0000554 ohm-cm
Magnetic Susceptibility 1.25e-61.25e-6
Critical Magnetic Field Strength, Oersted 5656
Critical Superconducting Temperature 0.360 - 0.440 K0.360 - 0.440 K
Thermal PropertiesHeat of Fusion 435.4 J/g187.3 BTU/lb
CTE, linear  8.90 µm/m-°C4.94 µin/in-°F
CTE, linear  @Temp. 20.0 - 100 °C@Temp. 68.0 - 212 °F
CTE, linear  10.1 µm/m-°C5.61 µin/in-°F
Specific Heat Capacity @Temperature 1000 °C@Temperature 1830 °F
Specific Heat Capacity 0.528 J/g-°C0.126 BTU/lb-°F
Thermal Conductivity 17.0 W/m-K118 BTU-in/hr-ft²-°F
Melting Point 1650 - 1670 °C3000 - 3040 °F
Optical PropertiesEmissivity (0-1) 0.630.63

Applications of Titanium

Applications of Titanium

Titanium is a highly versatile material with various applications across various industries. Some of the critical applications of titanium include:

%e5%9b%be%e7%89%872

Titanium’s unique combination of properties, including high strength, low density, and corrosion resistance, makes it an indispensable material for a wide range of applications across industries such as aerospace, biomedical, automotive, consumer products, and industrial applications.

Packaging

Our Titanium products are clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
