Pd 99.95% | Ø0.02–3.00 mm | Coil, Spool & Cut-to-Length | CoA Available
High-purity palladium wire for hydrogen research, catalysis, sensors, electronics, laboratory testing, and precision fabrication. MetalsTek supplies palladium wire in fine diameters, custom lengths, coils, spools, straight wire, and cut-to-length pieces according to research and industrial requirements.
Material: Palladium, Pd
Purity: 99.95% or custom purity
Condition: Annealed, hard-drawn, or as required
Properties: 12.02g/cc Density, 1,554.9°C M.P.
Form: Wire, String, Rod, or Custom-made
Sizes: Diameter 0.02~3.00 mm x Custom length
Packaging: Coil, spool, sealed bag, protective packaging
Material: Copper Wire, Palladium Plated, PdCu
Feature: Low Cost, Excellent Electrical and Thermal Conductivity, Resistance to Oxidation, and High Reliability
Main Applications: Chip Interconnection, Electronic Devices
Item | Specification |
|---|---|
Material | Palladium / Pd |
Purity | 99.95% or custom purity |
Diameter | Ø0.02–3.00 mm or custom |
Form | Coil, spool, straight wire, cut-to-length |
Condition | Annealed, hard-drawn, or as required |
Documentation | CoA / material certificate available upon request |

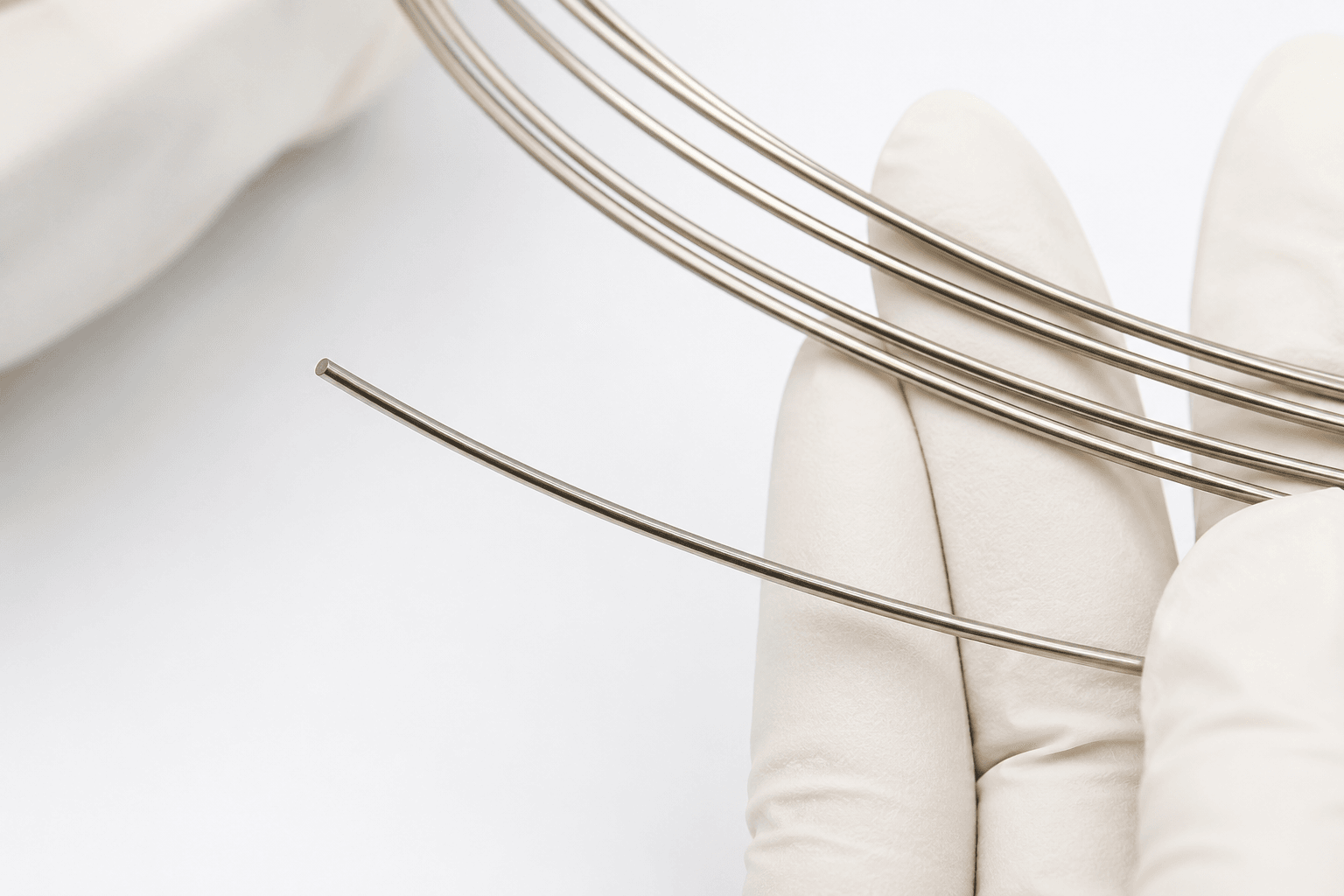

Palladium wire is a high-purity precious metal wire selected for applications that require hydrogen interaction, catalytic behavior, corrosion resistance, and stable electrical performance. Due to palladium’s strong interaction with hydrogen, Pd wire is widely used in hydrogen sensing research, hydrogen absorption/desorption experiments, catalyst studies, laboratory testing, and specialty electronic components.
MetalsTek supplies palladium wire in diameters from Ø0.02 mm to Ø3.00 mm, available as coils, spools, straight wire, and custom cut-to-length pieces. Custom diameter, purity, length, tolerance, surface condition, packaging, and documentation can be reviewed according to order requirements.
Palladium wire pricing depends on diameter, length, weight, purity, tolerance, form, and current precious metal cost. For accurate quotation, please provide the required diameter, total length or quantity, wire form, tolerance, surface condition, and certificate requirements.
For fine palladium wire, coil or spool packaging is recommended to reduce bending, kinking, and surface contamination during handling and shipment. For straight wire or cut-to-length pieces, please specify the required length, quantity, straightness, and packaging method.
If you only have a target weight or test quantity, MetalsTek can help calculate the approximate length based on the required wire diameter.
For custom diameter, tolerance, surface condition, or certificate requirements, please send your specifications for review.
Property | Customer Benefit |
|---|---|
Hydrogen Interaction Capability | Suitable for hydrogen sensing, hydrogen exposure studies, absorption/desorption experiments, and hydrogen-related research. |
Catalytic Activity | Applicable in catalyst testing, reaction systems, chemical research, and precious metal catalyst studies. |
Corrosion Resistance | Suitable for laboratory, chemical, and demanding service environments. |
Stable Electrical Performance | Used in precision connections, electronic structures, and specialty device components. |
Precious Metal Stability | Provides reliable performance in high-value research and specialized industrial applications. |
Fine Wire Availability | Available in small diameters for laboratory testing, sensors, and precision fabrication. |
Palladium wire is selected when hydrogen interaction, catalytic behavior, corrosion resistance, and precious metal stability are required. It is commonly used in hydrogen research, catalysis, laboratory testing, sensors, electronics, and custom precious metal components.

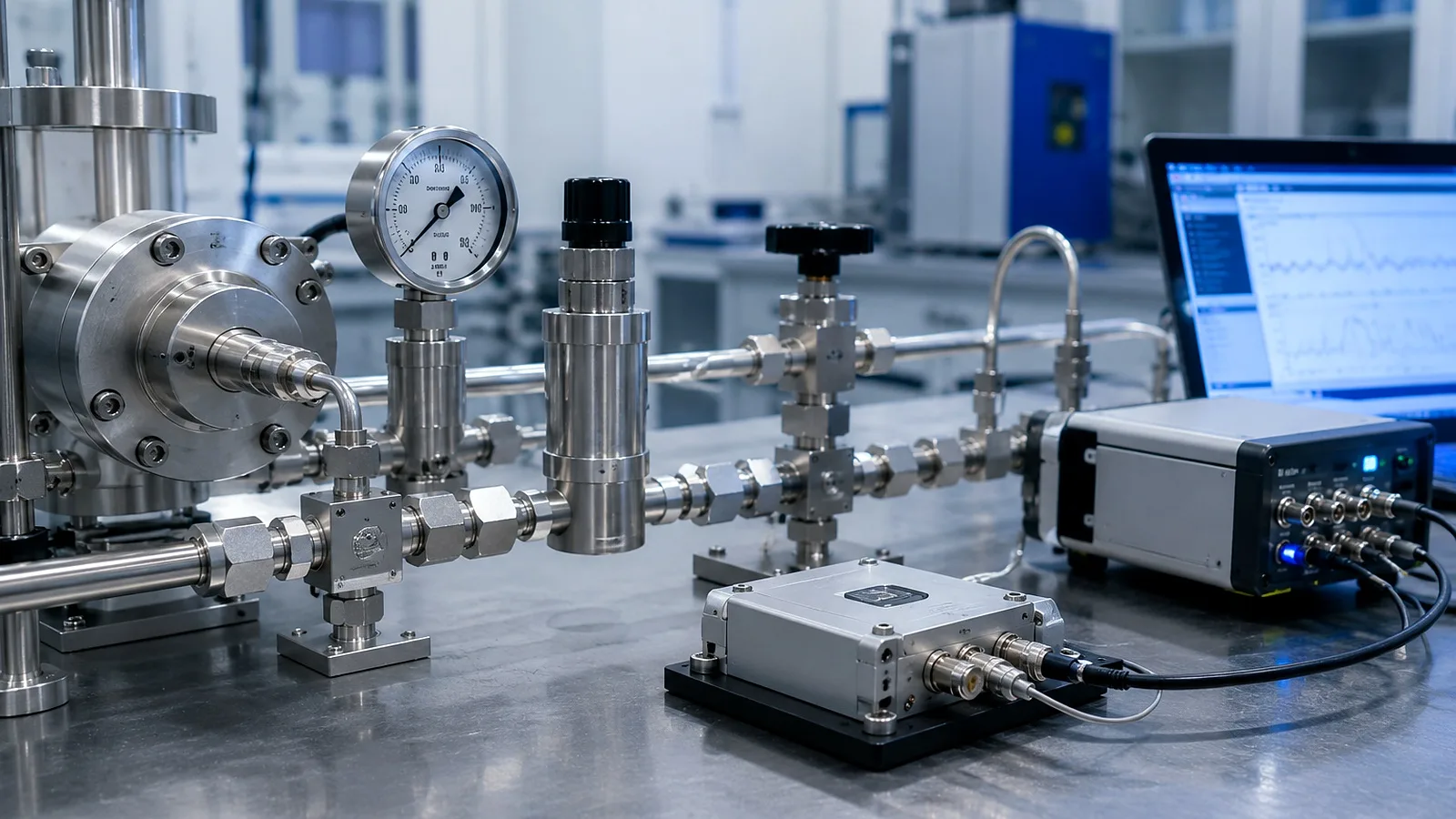

Palladium wire is widely used in hydrogen-related research because palladium can interact strongly with hydrogen. It is suitable for hydrogen detection elements, hydrogen exposure studies, absorption/desorption experiments, hydrogen sensing research, and laboratory R&D setups.
Typical uses include:

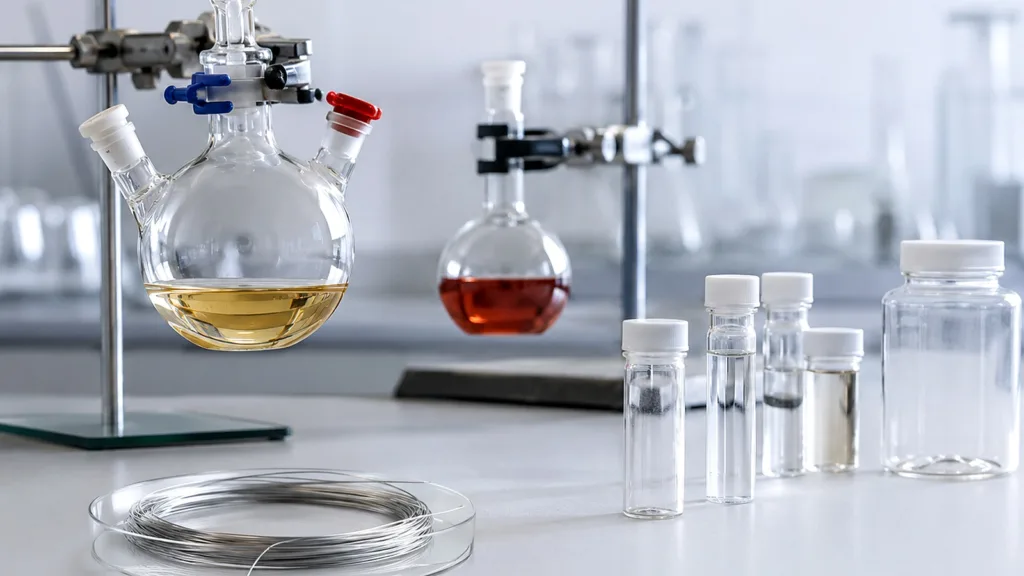

Palladium wire can be used in catalyst testing, chemical reaction systems, and precious metal catalyst studies. Its catalytic behavior makes it suitable for research environments where palladium’s surface properties are required.
Typical uses include:
High-purity palladium wire can be used as a laboratory material for test components, electrodes, and experimental setups where precious metal stability and clean material composition are important.
Typical uses include:
Palladium wire is used in specialty electronic and precision applications where stable electrical performance, corrosion resistance, and precious metal properties are required.
Typical uses include:
Palladium wire can be supplied in custom diameters, lengths, and forms for research and specialty industrial applications. Cut-to-length pieces, straight wire, coils, and spools can be prepared according to specific handling or assembly requirements.
Typical uses include:
If you are not sure which diameter, form, or packaging method is suitable for your application, MetalsTek can help review your requirements before quotation.
Palladium wire and palladium coated copper wire are different materials. Pure palladium wire is made from palladium metal and is selected when palladium’s material properties are required. Palladium coated copper wire has a copper core with a palladium coating and is commonly used in electronic packaging and wire bonding applications.
Note: Pure palladium wire should be selected when palladium’s hydrogen interaction, catalytic behavior, corrosion resistance, or precious metal properties are required. Palladium coated copper wire is mainly used when a copper-core bonding wire with a palladium coating is needed.
Product | Main Advantage | Typical Use |
|---|---|---|
Palladium Wire | Pure Pd properties, hydrogen interaction, catalytic behavior, corrosion resistance | Hydrogen research, catalysis, sensors, specialty components |
Palladium Coated Copper Wire | Lower cost, copper-core conductivity, Pd-coated surface | Wire bonding, semiconductor packaging, chip interconnection |
Platinum Wire | High chemical and thermal stability | Electrodes, sensors, high-temperature research |
Silver Wire | High electrical conductivity | Conductive components, electronics, research |
MetalsTek can supply palladium wire according to customer requirements for hydrogen research, catalysis, electronics, laboratory testing, and specialty industrial applications.
Requirement | Available Support |
|---|---|
Diameter | Fine wire and custom diameter options |
Length | Cut-to-length or continuous length |
Form | Coil, spool, straight wire |
Condition | Annealed, hard-drawn, or as required |
Surface | Bright, clean, degreased, or custom surface condition |
Packaging | Protective packaging for precious metal wire |
Documentation | CoA, material certificate, inspection report upon request |
Special Requirements | Custom purity, tolerance, packaging, and application-specific requirements can be reviewed upon request |
To help us provide an accurate quotation, please include the following information when sending your inquiry.
Required Information | Example |
|---|---|
Material | Palladium / Pd |
Purity | 99.95% |
Diameter | Ø0.25 mm |
Length or Quantity | 10 ft, 100 m, 50 g, or custom quantity |
Form | Coil, spool, straight wire, or cut-to-length |
Condition | Annealed, hard-drawn, or as required |
Tolerance | Standard or according to drawing |
Documentation | CoA or material certificate required |
Application | Hydrogen sensor, catalyst research, electronics, laboratory use |
Special Requirements | Packaging, surface condition, tolerance, delivery schedule |
Product | Main Feature | Typical Application |
|---|---|---|
Platinum Wire | Excellent chemical and thermal stability | Electrodes, sensors, laboratory use |
Rhodium Wire | High corrosion resistance and hardness | Specialty research and precious metal applications |
Iridium Wire | High melting point and oxidation resistance | High-temperature and advanced research applications |
Silver Wire | High electrical conductivity | Electronics and conductive components |
Palladium Sheet & Foil | Flat palladium material forms | Research, fabrication, catalyst studies |
Palladium Sputtering Target | Palladium target for thin film deposition | PVD coating, electronics, thin film research |
What diameter of palladium wire can you supply?
MetalsTek can supply palladium wire in diameters from Ø0.02 mm to Ø3.00 mm. Custom fine wire sizes may be available depending on order quantity, tolerance, and production requirements.
Can palladium wire be supplied in custom cut lengths?
Yes. Palladium wire can be supplied as continuous length, coil, spool, straight wire, or cut-to-length pieces according to customer requirements.
Can palladium wire be supplied on spools?
Yes. For fine palladium wire, spool or coil packaging is recommended to reduce bending, kinking, and handling damage during shipment.
Can you quote palladium wire by length or weight?
Yes. Palladium wire can be quoted by length, weight, or custom quantity. Since weight depends on diameter and length, please provide the required wire diameter and total length for accurate pricing.
What information is needed for quotation?
Please provide material, purity, diameter, length or quantity, form, condition, tolerance, certificate requirements, and application details. Drawings or special specifications are helpful when custom processing is required.
Can you provide CoA or material certificate?
Yes. CoA, material certificate, and inspection reports can be provided upon request. Please confirm documentation requirements before quotation.
What is the difference between palladium wire and palladium coated copper wire?
Palladium wire is made from palladium metal, while palladium coated copper wire uses a copper core with a palladium coating. Palladium wire is used where pure Pd properties are required, while palladium coated copper wire is commonly used in electronic packaging and wire bonding.
Is palladium wire suitable for hydrogen research?
Yes. Palladium is widely studied for hydrogen interaction, making palladium wire suitable for hydrogen sensing research, hydrogen exposure studies, absorption/desorption experiments, and related laboratory testing. Final suitability depends on the specific experimental design and operating conditions.
Is palladium wire suitable for catalysis research?
Yes. Palladium wire can be used in catalyst testing, chemical research, and laboratory reaction systems where palladium’s catalytic behavior is required.
How is fine palladium wire packaged?
Fine palladium wire is usually supplied in coils, spools, sealed bags, or protective packaging. Packaging can be adjusted according to wire diameter, length, and handling requirements.
Can you support custom purity or special requirements?
Custom purity, diameter, length, condition, packaging, and documentation requirements can be reviewed according to order details. Please send your specifications for evaluation.
