Rhenium Rod

MetalsTek Engineering excels in delivering high-quality Rhenium Rods, leveraging our expertise to meet the demands of industries requiring exceptional thermal stability, mechanical strength, and corrosion resistance. As a trusted provider, MetalsTek Engineering contributes to technological advancements in aerospace, medical imaging, catalysis, and more, ensuring top-notch performance and reliability in diverse applications.

Rhenium Rod

Rhenium-Rod

Material: Rhenium, Re

Purity: 99.95%~99.999%

Size: Rod – Diameter 1~20mm * Length<500mm

     Wire – Diameter 0.02~3.00mm * Length

Surface: Polished or Customized

Other: Purity, Size and Surfaces Can be Customized

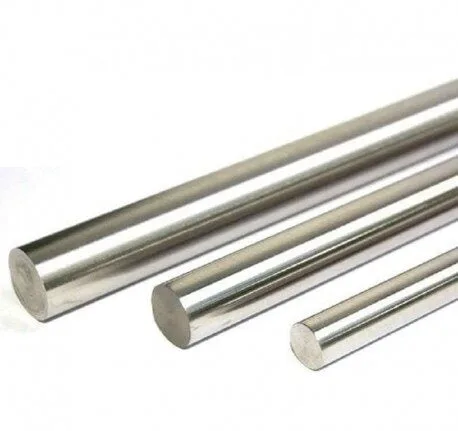

Tungsten Rhenium Rod​

Material: Tungsten Rhenium

Composition: WRe3%, WRe5%, WRe25%, WRe26%

Appearance: Silver Metallic

Size: Diameter 1~17mm

Other: Can be Customized

Molybdenum_Rhenium_Alloy_Rod_Bar

Model: Mo/Re Rod

Compositions: 86Mo14Re, 80Mo20Re, 59Mo41Re, 55.5Mo44.5Re, 52.5Mo47.5Re

Sizes: Diameter 1~17mm, or Customized

Color: Silver Metallic Color:

Application: Thermocouple, Electronics, Furnace, Joining, Aerospace Industries, Microwave Communication

Description

Rhenium Rods are manufactured using processes such as powder metallurgy or hot forging, resulting in a high-purity, dense material with exceptional mechanical and thermal properties. Rhenium is a chemical element with the symbol Re and atomic number 75. It is a rare, silvery-white metal belonging to the transition metal group in the periodic table. Rhenium is one of the densest and highest-melting elements, with a melting point of approximately 3,180°C (5,756°F), making it one of the highest melting points.

Thanks to their exceptional properties and versatility, rhenium Rods play a crucial role in enabling technological advancements and innovation across various industries. The most extensive use of Rhenium is for jet engines, and the chemical industry’s catalytic uses are the next most important.

Chemical Composition- Re 99.95% min (excluding gas elements)

Na0.00%Ti0.00%Cu0.00%Sb0.00%
Mg0.00%V0.00%Zn0.00%Ta0.00%
Al0.00%Cr0.00%As0.00%W0.00%
Si0.00%Mn0.00%Zr0.00%Pb0.00%
P0.00%Fe0.00%Mo0.00%Bi0.00%
K0.00%Co0.00%Cd0.00%Se0.00%
Ca0.00%Ni0.00%Sn0.00%Tl0.00%
C0.30%N0.10%O0.20%H0.10%
*Maximum trace metallic impurities, analyzed by ICP-MS

Applications

Rhenium Rods find applications across a range of industries, including:

Rhenium Rods Packaging

Our Rhenium Rods are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
