Niobium Crucible Cup

Niobium Crucibles Product List

Leveraging our extensive experience in powder metallurgy, MetalsTek Engineering manufactures Niobium Crucibles with outstanding purity, precise sizing, high density, and smooth surfaces—free from cracks, voids, and irregular protrusions. Our products ensure an extended service life, ultimately saving costs for our customers. We offer a range of crucibles, including round mouth, taper, ellipse, and bottomless crucibles, and can customize production based on customer drawings.

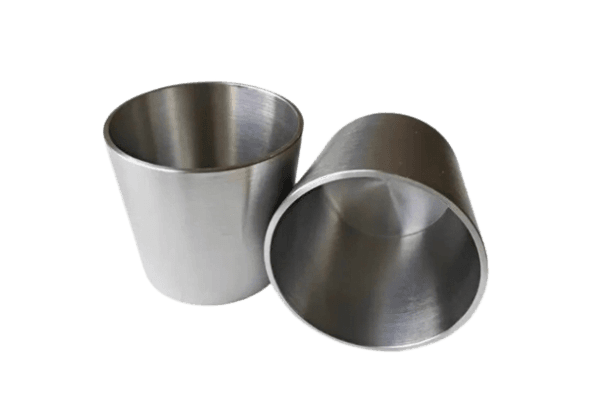

Niobium (Nb) Crucible

Niobium__Nb__Crucible

Material: R04200, R04210 Niobium

Purity: 99.9%, 99.95%

Size Range: Round Dia.10~500mm, Height 10~600, Wall Thick 2~20mm

            Rectangular Width 10~60, Height 10~60mm, Length 600~1,500mm

Other: Shape and Size Can be Customized

Description

Niobium Crucible, or Niobium Cup, finds extensive use in high-temperature engineering applications (exceeding 1200°C). The Niobium Crucible serves various purposes, acting as a container in rare-earth metallurgy and load plates for tantalum and niobium electrolytic capacitors with high-temperature sintering. Additionally, it finds application as a corrosion-resistant container in chemical industries and evaporation crucibles and liners.

Chemical Compositions of Pure Niobium (% Max)

GradeNbFeSiNiWMoTiTaOCHN
R04200Balance0.0040.0040.0020.0050.0050.0020.070.0150.0040.00150.003
R04210Balance0.010.010.0050.020.010.0040.10.020.010.00150.01

Physical Properties of Pure Niobium

GradeTensile strength, psi (MPa), ≥Yield strength (0.2% offset), psi (MPa),≥Elongation in 1" gage length, %, ≥
>=0.010”<0.010”

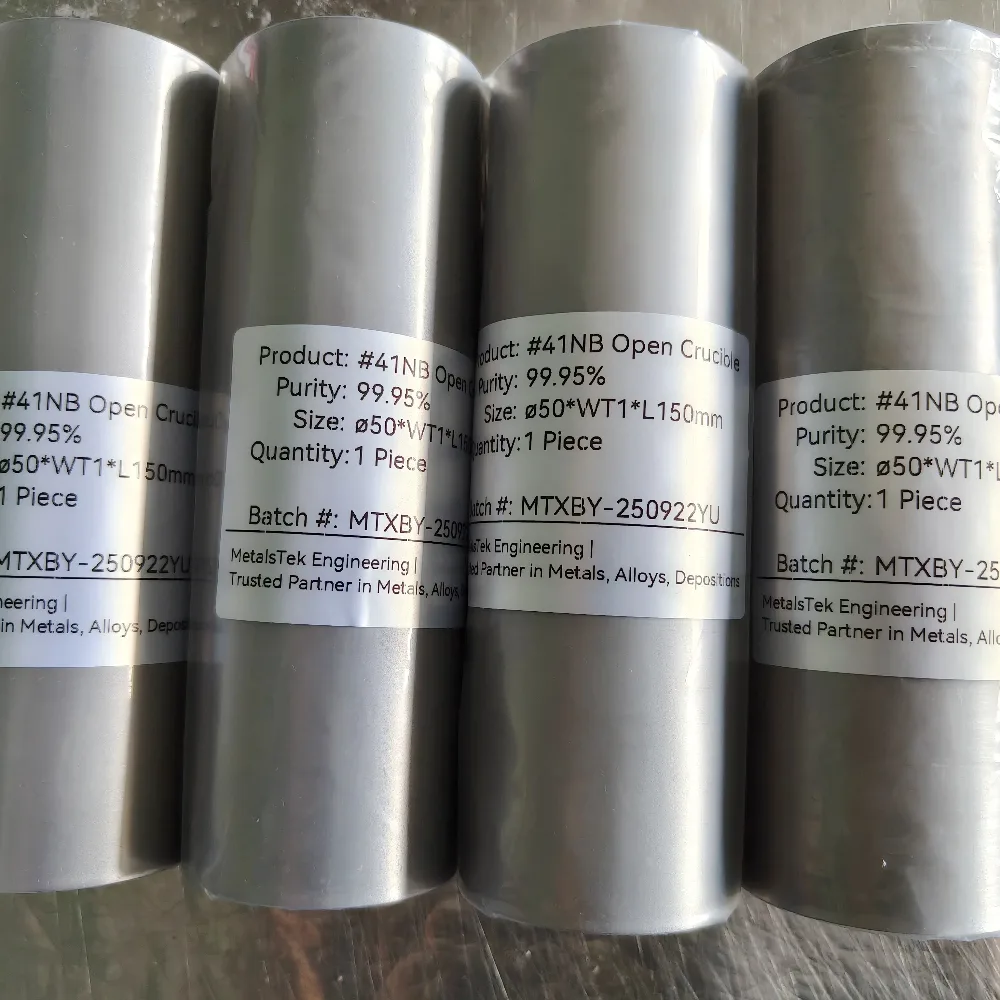

Packaging

Our Niobium Crucibles are clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
