All You Need to Know About Molybdenum Moly Alloy Tubings: A Comprehend Guide
In today’s rapidly evolving industrial landscape, the need for materials that can withstand extreme conditions is more critical than ever. Molybdenum, TZM, and Mo-La tubings have become essential components in many high-tech applications and are known for their exceptional properties and performance. This article explores the characteristics, applications, and advantages of molybdenum and moly alloy tubes and pipes, providing a comprehensive guide for those considering their use.
Table of Contents
Chapter 1
Properties and Characteristics of Molybdenum and TZM Tubings
What is molybdenum? Molybdenum is a refractory metal with a high melting point of 2,623 °C (4,753 °F), making it ideal for applications requiring extreme heat resistance. Its properties include:
- High Strength: Molybdenum retains its mechanical strength at high temperatures.
- Excellent Conductivity: It has superior thermal and electrical conductivity.
- Corrosion Resistance: Molybdenum resists oxidation and chemical corrosion, extending the lifespan of components.
TZM (Titanium-Zirconium-Molybdenum) is an alloy that enhances the properties of pure molybdenum:
- Increased Strength: TZM offers improved mechanical strength, especially at elevated temperatures.
- Enhanced Creep Resistance: The alloy maintains integrity under prolonged stress and high temperatures.
- Stable Grain Structure: Adding titanium and zirconium improves the material’s stability, reducing the risk of failure.
Mo-La (Molybdenum-Lanthanum) is another molybdenum alloy known for its improved performance:
- High Recrystallization Temperature: Mo-La alloy has a higher recrystallization temperature, maintaining its properties at high temperatures.
- Improved Creep Resistance: Lanthanum addition enhances creep resistance, making it suitable for long-term high-temperature applications.
- Enhanced Ductility: The alloy offers better flexibility than pure molybdenum, making it easier to work with.
Chapter 2
Applications of Molybdenum, TZM, and Mo-La Tubings in Various Industries
Molybdenum, TZM, and Mo-La tubings are used in a wide range of industries due to their unique properties:
Aerospace and Defense
Molybdenum, TZM, and Mo-La tubings are critical in the aerospace and defense sectors due to their ability to withstand extreme temperatures and harsh environments. These materials are used in:
- Rocket Nozzles and Engines: The high melting point and strength of molybdenum and TZM alloys make them ideal for components exposed to intense heat and pressure.
- Heat Shields: TZM and Mo-La alloys provide excellent thermal protection, making them suitable for heat shields in spacecraft and aircraft.
- Structural Components: These materials’ durability and corrosion resistance ensure long-lasting performance for various structural parts in aircraft and missiles.
Energy and Power Generation
The energy sector relies on the exceptional properties of molybdenum, TZM, and Mo-La tubings for efficient and safe operations in high-temperature and corrosive environments:
- Nuclear Power Plants: Molybdenum and its alloys are used in reactor components and fuel rods due to their high thermal conductivity and resistance to radiation damage.
- Fossil Fuel Power Plants: These tubings are employed in boiler tubes and heat exchangers where high-temperature stability and corrosion resistance are crucial.
- Solar Power Systems: Molybdenum is used in solar thermal systems and photovoltaic cells, where its excellent conductivity enhances energy efficiency.
Manufacturing and Industrial Processes
In manufacturing and industrial settings, molybdenum, TZM, and Mo-La tubings play vital roles in processes that demand high performance under extreme conditions:
- High-Temperature Furnaces: Molybdenum and TZM tubings are used as heating and structural supports in furnaces operating at temperatures exceeding 1,000°C.

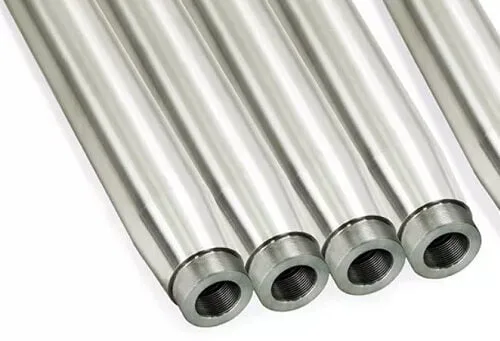

- Glass Production: Molybdenum’s Resistance to
corrosion by molten glass makes it ideal for components such as stirrers, melting electrodes, and liners in glass manufacturing.
Chemical Processing
The chemical industry benefits from the corrosion resistance and high-temperature stability of molybdenum, TZM, and Mo-La tubings:
- Reactors and Vessels: These tubings are used in chemical reactors and pressure vessels where exposure to corrosive chemicals and high temperatures is expected.
- Heat Exchangers: These materials’ thermal conductivity and corrosion resistance ensure efficient heat transfer and durability in aggressive chemical environments.
Electronics and Semiconductor Manufacturing
Molybdenum and its alloys are essential in the electronics and semiconductor industries due to their excellent electrical conductivity and thermal stability:
- Sputtering Targets: Molybdenum and Mo-La alloys are used in sputtering targets for thin-film deposition in semiconductor and display manufacturing.
- Capillary Tubes: Precision molybdenum capillary tubes are used to produce high-performance electronic components and sensors.
Medical and Scientific Equipment
The medical and scientific fields leverage the unique properties of molybdenum and its alloys for various high-precision applications:
- X-ray Tubes: Molybdenum’s ability to withstand high temperatures and its radiopacity make it ideal for X-ray tube components.
- Laboratory Equipment: Mo-La alloy tubings are used in high-temperature furnaces, analytical instruments, and other scientific equipment requiring stable performance under extreme conditions.
Automotive Industry
The automotive sector uses molybdenum and TZM tubings for components that need to endure high temperatures and mechanical stress:
- Turbochargers: Molybdenum alloys are employed in turbocharger housings and components to enhance performance and durability.
- Exhaust Systems: These materials improve heat resistance and reduce corrosion.
Oil and Gas Industry
In the oil and gas industry, the robustness and resistance of molybdenum, TZM, and Mo-La tubings are crucial for reliable operations:
- Drilling Equipment: These materials are used in drilling equipment and pipelines to withstand the harsh conditions of deep-sea and onshore drilling.
- Refinery Components: Molybdenum alloys are applied in refining equipment where high temperatures and corrosive substances are prevalent.
Molybdenum, TZM, and Mo-La tubings are indispensable across various industries due to their exceptional properties, including high-temperature resistance, mechanical strength, and corrosion resistance. These materials enhance the performance and longevity of critical components, making them valuable assets in demanding applications. For high-quality molybdenum, TZM, and Mo-La tubings, consider partnering with MetalsTek. Contact us at sales@metalstek.com or visit www.metalstek.com to learn more about our products and how we can support your industrial needs.
Chapter 3
Advantages of Using Molybdenum, TZM, and Mo-La Tubings
The benefits of using these advanced tubings are numerous:
- High-Temperature Resistance: All three materials can withstand extreme heat without losing strength.
- Mechanical Strength and Durability: These tubings are robust and durable, ensuring long-term performance.
- Corrosion Resistance: They resist oxidation and corrosion, making them suitable for harsh environments.
- Enhanced Performance: Mo-La alloy offers additional benefits such as improved ductility and higher recrystallization temperature.
Chapter 4
Manufacturing Process of Molybdenum, TZM, and Mo-La Tubings
The manufacturing process of molybdenum, TZM (Titanium-Zirconium-Molybdenum), and Mo-La (Molybdenum-Lanthanum) tubings involves several critical steps to ensure the production of high-quality, durable, and precise materials. Here, we outline the key stages in this process:
Powder Metallurgy – Sintering – Hot Working – Cold Working – Annealing – Finishing – Quality Control – Packaging&Shipping
Powder Metallurgy
1. Powder Preparation:
Molybdenum Powder: The process begins with the extraction and purification of molybdenum ore, which is then converted into molybdenum powder.
Alloying Elements: For TZM and Mo-La alloys, titanium, zirconium, and lanthanum powders are prepared and thoroughly mixed with molybdenum powder to ensure uniform composition.
2. Compaction: The powdered material is subjected to cold isostatic pressing (CIP) to form a compacted billet. This process applies uniform pressure from all directions, ensuring high density and uniformity.
Sintering
High-Temperature Sintering:
- The compacted billet is sintered in a hydrogen atmosphere or vacuum furnace at high temperatures. This step eliminates porosity and increases the material’s density.
- Sintering temperatures typically range from 1,800°C to 2,100°C, depending on the specific alloy composition.
Hot Working
1. Hot Forging: The sintered billet undergoes hot forging to refine its grain structure further and improve mechanical properties. This process involves heating the billet to a high temperature and applying compressive forces to shape it into a preliminary form.
2. Extrusion: The forged billet is then extruded through a die to form long, tubular shapes. Extrusion is performed at high temperatures to ensure the material flows smoothly through the die, producing tubes with uniform wall thickness and diameter.
Cold Working
Cold Drawing: After extrusion, the tubes undergo cold drawing to achieve the final dimensions and surface finish. This process involves pulling the tube through progressively smaller dies at room temperature.
Cold drawing enhances the mechanical properties of the tubes by refining the grain structure and improving strength and hardness.
Annealing
Stress Relief Annealing: The tubes are annealed at controlled temperatures to relieve internal stresses induced during cold working. Annealing restores ductility and improves the material’s overall toughness.
Finishing
- Surface Treatment: The tubes are subjected to various surface treatments, such as chemical cleaning, polishing, and passivation, to enhance their corrosion resistance and surface quality.
- Precision Machining: The tubes may undergo precision machining for specific applications to meet tight dimensional tolerances and unique design requirements.
Quality Control
Inspection and Testing: Each batch of molybdenum, TZM, and Mo-La tubings undergoes rigorous quality control testing to ensure they meet the required specifications. Testing includes:
- Chemical Analysis: To verify the material composition.
- Mechanical Testing: To assess properties such as tensile strength, hardness, and flexibility.
- Dimensional Inspection: To ensure tubes meet precise dimensional tolerances.
- Non-Destructive Testing (NDT): Ultrasonic testing, radiography, and eddy current testing are used to detect internal and surface defects.
Packaging and Shipping
1. Packaging: The finished tubes are carefully packaged to prevent damage during transit. Packaging materials are selected based on the destination and handling requirements to ensure the tubes arrive in optimal condition.
2. Documentation: Comprehensive documentation, including material certificates, test reports, and compliance certificates, is provided to customers to guarantee the quality and traceability of the products.
Chapter 5
A Comprehensive Guide When Choosing Molybdenum, TZM, and Mo-La Tubings
Choosing the suitable material for your specific application ensures optimal performance and longevity. When selecting molybdenum, TZM (Titanium-Zirconium-Molybdenum), and Mo-La (Molybdenum-Lanthanum) tubings, several key factors must be considered. This guide outlines the essential aspects to help you make an informed decision.
Application Requirements
Operating Environment:
- Temperature: Molybdenum and its alloys have excellent high-temperature stability. TZM is particularly suited for extremely high temperatures due to its enhanced creep resistance, while Mo-La offers improved performance in intermediate high-temperature applications.
- Corrosive Conditions: Assess the presence of caustic chemicals or gases. Molybdenum alloys typically offer good corrosion resistance, but specific applications may require tailored solutions.
Mechanical Stress:
- Load and Pressure: Determine the mechanical stresses the tubing will endure, including tensile, compressive, and shear forces. TZM and Mo-La alloys provide superior strength and resistance to deformation under load.
- Vibration and Impact: Consider the potential for vibrational or impact forces, which might necessitate materials with high toughness and fatigue resistance.
Material Properties
Thermal Conductivity:
- High thermal conductivity is essential for applications involving heat transfer. Molybdenum and its alloys are known for excellent thermal conductivity, making them suitable for heat exchangers and high-temperature furnace components.
Electrical Conductivity:
- Molybdenum’s high electrical conductivity is advantageous for applications involving electrical current, such as electronic or semiconductor manufacturing.
Creep Resistance:
- Creep resistance is critical for components exposed to prolonged high temperatures. TZM alloy excels in this area, maintaining its mechanical properties over extended periods.
Recrystallization Temperature:
- Mo-La alloy offers a higher recrystallization temperature, making it suitable for applications where dimensional stability at high temperatures is crucial.
Dimensional Requirements
- Wall Thickness and Diameter: Ensure the tubing dimensions meet the specific needs of your application. Thin-walled capillary tubes may be required for precision instruments, while thicker walls might be necessary for structural components.
- Length and Form Factor: Custom lengths and forms may be needed to fit specific designs or installations. Verify that the supplier can provide the necessary dimensions.
Manufacturing Quality
- Purity and Composition: High purity is essential for maintaining the material’s properties. Verify the supplier’s quality control processes to ensure consistent composition and absence of impurities.
- Surface Finish: A smooth surface finish can reduce the risk of corrosion and improve the tubing’s performance in high-precision applications. Check for options like chemical cleaning, polishing, and passivation.
- Tolerances: Tight dimensional tolerances are often required in high-precision applications. Ensure the manufacturer can consistently meet these specifications.
Cost and Availability
- Budget Constraints: Balance the cost against the performance benefits. While molybdenum and its alloys may be more expensive than other materials, their superior properties can justify the investment for critical applications.
- Lead Times: Consider the supplier’s lead times for production and delivery. Reliable logistics and on-time delivery are crucial for maintaining your project schedule.
Supplier Reliability
- Experience and Expertise: Choose a supplier with a proven track record in producing high-quality molybdenum, TZM, and Mo-La tubings. Experience in your specific industry can also be beneficial.
- Certifications and Standards: Ensure the supplier adheres to industry standards and holds relevant certifications, such as ISO quality management systems, to guarantee product quality and consistency.
- Customization Options
- Tailored Solutions: Your application may require custom dimensions, alloy compositions, or surface treatments. Verify that the supplier can provide bespoke solutions to meet your specific needs.
- Technical Support: Access to technical support and expertise can be invaluable, particularly for complex or demanding applications. A responsive supplier can help address challenges and optimize material selection.
Selecting suitable molybdenum, TZM, or Mo-La tubings for your application involves carefully considering various factors, including application requirements, material properties, dimensional needs, manufacturing quality, cost, and supplier reliability. By thoroughly evaluating these aspects, you can ensure that you choose the best material to meet your performance criteria and achieve long-term success in your projects. For high-quality molybdenum, TZM, and Mo-La tubings, contact MetalsTek at sales@metalstek.com or visit www.metalstek.com to explore our extensive range of advanced materials tailored to your industrial needs.
Chapter 6
Maintenance and Care for Molybdenum, TZM, and Mo-La Tubings
Proper maintenance can extend the life of your tubings:
- Routine Maintenance: Regular inspections and cleanings help prevent buildup and damage.
- Handling and Storage: Store tubings in a dry, cool environment to avoid corrosion and physical damage.
- Repair and Longevity: Address any wear and tear promptly to maintain performance.
Chapter 7
Comparison of Molybdenum, TZM, and Mo-La Tubings with Other Materials
When selecting materials for high-performance applications, it is crucial to understand how molybdenum, TZM (Titanium-Zirconium-Molybdenum), and Mo-La (Molybdenum-Lanthanum) tubings compare to other commonly used materials. This comparison will help highlight each material’s unique advantages and potential drawbacks, allowing you to make an informed decision for your specific application needs.
Molybdenum vs. Stainless Steel
Properties:
- Temperature Resistance: Molybdenum has a much higher melting point (2,623°C) than stainless steel (approximately 1,400-1,530°C), making it more suitable for extreme high-temperature applications.
- Thermal Conductivity: Molybdenum offers better thermal conductivity, which is advantageous in heat exchange applications.
- Corrosion Resistance: While stainless steel is known for its corrosion resistance in many environments, molybdenum provides superior resistance in specific aggressive conditions, such as exposure to molten glass and high-temperature oxidizing environments.
Applications:
- Molybdenum is preferred in applications requiring high-temperature stability and excellent thermal conductivity, such as aerospace and high-temperature furnaces.
- Stainless steel is commonly used in general-purpose applications where moderate temperature and good corrosion resistance are required, such as in food processing and chemical industries.
TZM vs. Nickel Alloys (Inconel)
Properties:
- Strength and Creep Resistance: TZM alloy offers higher strength and superior creep resistance at elevated temperatures than most nickel alloys, making it ideal for prolonged high-temperature applications.
- Thermal Conductivity: TZM has better thermal conductivity, which is beneficial for heat dissipation.
- Cost: Nickel alloys like Inconel are typically more expensive than TZM, although the exact cost can vary depending on the specific alloy and market conditions.
Applications:
- TZM is used in applications requiring high strength and creep resistance, such as rocket nozzles and furnace components.
- Nickel alloys are used in highly corrosive environments where excellent oxidation resistance at high temperatures is required, such as in turbine blades and chemical processing equipment.
Mo-La vs. Pure Molybdenum
Properties:
- Recrystallization Temperature: Mo-La alloy has a higher recrystallization temperature than pure molybdenum, which helps maintain mechanical properties at elevated temperatures.
- Ductility: Mo-La offers improved flexibility, making fabricating and working easier, especially in applications requiring complex shapes.
- Creep Resistance: Mo-La has better creep resistance, making it suitable for long-term high-temperature applications.
Applications:
- Mo-La is preferred in high-temperature applications where structural stability and ease of fabrication are essential, such as thermocouple protection tubes and high-temperature furnace components.
- Pure molybdenum is used where high thermal and electrical conductivity are crucial, and extreme temperatures are less of a concern.
Molybdenum, TZM, and Mo-La vs. Tungsten
Properties:
- Melting Point: Tungsten has a higher melting point (3,422°C) than molybdenum, TZM, and Mo-La, making it more suitable for the most extreme temperature applications.
- Density: Tungsten is denser, which can be a disadvantage where weight is a concern.
- Machinability: Molybdenum and its alloys are generally more accessible to machine and fabricate than tungsten.
Applications:
- Tungsten is used in applications requiring the highest temperature resistance, such as in the filaments of light bulbs and specific aerospace components.
- Molybdenum, TZM, and Mo-La are chosen for high-temperature applications where lower density and easier machinability are advantageous.
Molybdenum, TZM, and Mo-La vs. Titanium
Properties:
- Strength-to-Weight Ratio: Titanium has an excellent strength-to-weight ratio, which is beneficial in aerospace applications.
- Temperature Resistance: While titanium has good temperature resistance, it is not as high as molybdenum and its alloys.
- Corrosion Resistance: Titanium offers superior corrosion resistance in many environments, mainly marine and chemical processing applications.
Applications:
- Titanium is used where lightweight and corrosion resistance is critical, such as in aerospace structures and medical implants.
- Molybdenum, TZM, and Mo-La are preferred in high-temperature applications where their unique thermal and mechanical properties are essential.
Molybdenum, TZM, and Mo-La tubings offer unique advantages over other materials like stainless steel, nickel alloys, tungsten, and titanium. Their high-temperature resistance, excellent thermal conductivity, and superior mechanical properties make them ideal for demanding aerospace, energy, manufacturing, and other high-tech applications. Understanding the specific requirements of your application and the comparative benefits of these materials will help you choose the best solution. For high-quality molybdenum, TZM, and Mo-La tubings, contact MetalsTek at sales@metalstek.com or visit www.metalstek.com to explore our extensive range of advanced materials tailored to your industrial needs.
Chapter 8
Frequently Asked Questions About Molybdenum, TZM, and Mo-La Tubings
Q: What is the main difference between molybdenum and TZM tubings?
A: TZM tubings contain titanium and zirconium, providing enhanced strength and stability at high temperatures compared to pure molybdenum tubings.
Q: What are the benefits of using Mo-La alloy tubings?
A: Mo-La alloy tubings offer a higher recrystallization temperature, improved creep resistance, and better ductility than pure molybdenum.
Q: What industries benefit most from using molybdenum, TZM, and Mo-La tubings?
A: Aerospace, defense, energy, and manufacturing industries benefit significantly due to the high-temperature and corrosion-resistant properties of these materials.
Q: How do I ensure the quality of these tubings?
A: Partner with reputable suppliers like MetalsTek, which offers high-purity materials and rigorous quality control processes.
If you have more questions about Molybdenum tubes or other molybdenum products, even custom metal products, feel free to talk to us. Our expert team is at your service.
Chapter 9
MetalsTek-Your Trusted Source of Molybdenum and Molybdenum Alloy Tubes, Pipes, and Capillaries
Molybdenum, TZM, and Mo-La tubings offer unparalleled advantages for high-performance applications across various industries. Their exceptional properties, including high-temperature resistance, mechanical strength, and corrosion resistance, make them indispensable in many demanding environments. For top-quality molybdenum, TZM, and Mo-La tubings, consider partnering with MetalsTek. Contact us at sales@metalstek.com or visit www.metalstek.com to learn more about our products and how we can support your industrial needs.
