Aluminum Foam Mesh

MetalsTek Engineering is a leading manufacturer and supplier of Aluminum Foams and Meshes. We can custom the foam and wire mesh according to your unique applications.

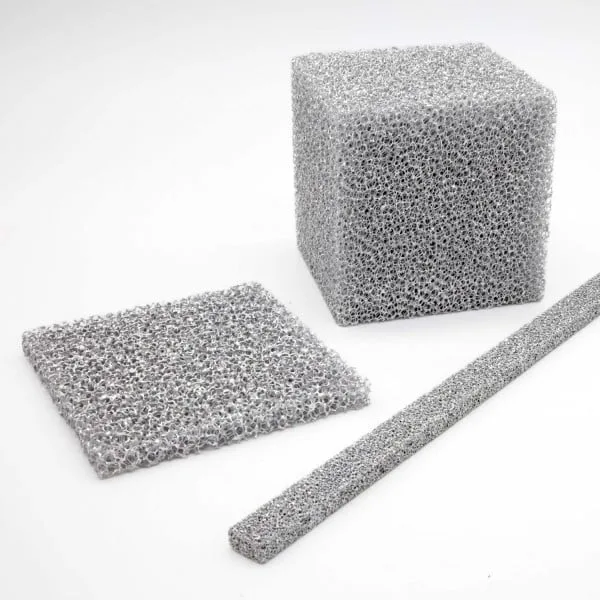

Aluminum Foam

Aluminum Foam

Material: Aluminum

Density: 0.2~0.7g/cc

Shape: Sheet, Plate, Belt, Can be Customized

Thickness: 0.3~100mm

Get A Quote
More About Aluminum Foam
Description: Aluminum Foam materials containing foamed pores exhibit higher porosity and larger pore sizes, up to 7 mm, compared to conventionally sintered porous metals. As a two-phase composite consisting of a metal matrix skeleton and dispersed pores, the properties of metal foam are contingent upon factors such as the metal matrix utilized, porosity, pore structure, and preparation process. Generally, as porosity increases, mechanical properties decline, while electrical and thermal conductivity decrease exponentially. Under pressure, foamed metals demonstrate remarkable impact energy absorption due to increased force area resulting from pore collapse and material strain-hardening. Foamed aluminum and its alloys offer lightweight characteristics along with sound absorption, heat insulation, vibration damping, shock absorption, and electromagnetic wave attenuation. These attributes render them suitable for applications ranging from missile and aircraft impact protection to automobile buffers, electromechanical vibration damping devices, and pulse mitigation.Applications: Aluminum Foam is versatile and can be used for sound reverberation in concert halls, studios, and other public spaces. It’s also great for muffling noise in clean workshops, labs, and other sensitive areas. Additionally, it can be used as a sound barrier in highways, railways, and other noisy environments. Finally, it’s great for sound absorption and insulation in various types of equipment.Specifications of Aluminum Foam:
DensityVoid ratioEnergy absorptionCompressive strengthBending strengthAperture
0.2g/cm3 to 0.7g/cm375% to 90%8J/m3～30J/m33Mpa-17Mpa3Mpa-15Mpauniform distribution 1-10mm, main aperture 4-8mm

No.AlFoam-1AlFoam-2AlFoam-3
Relative gravity(g/cm3)0.25～0.40.4～0.6>0.6
Size (mm)2,400×800×Thick (or Customized)2,400×800×Thick (or Customized)2,400×800×Thick (or Customized)
ApplicationsSound absorbing the material, marble composite board, interior and exterior decorative composite board, heat insulation wall materialImpact resistant material, composite body panel, sound insulation material, marble composite board, interior and exterior decorative composite boardImpact resistant material

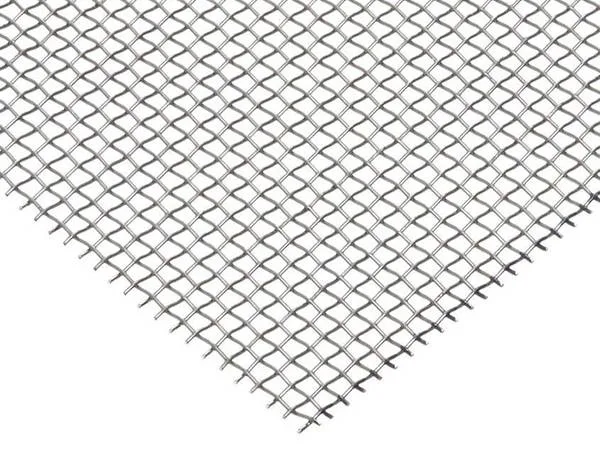

Aluminum Wire Mesh

Aluminum Wire Mesh

Material: Aluminum Alloy, 1350, 5052, 5056, 6061

Shape: Wire Mesh, Can be Customized

Mesh Size: 2~325 Mesh

Wire Diameter: 0.035~1.6mm / 0.0014”~0.063”

Get A Quote
More About Aluminum Wire Mesh

Description: Aluminum Wire Mesh is a lightweight option, weighing approximately one-third of its stainless-steel counterpart. It is also resistant to corrosion in most environments, except in the presence of alkaline solutions and hydrochloric and hydrofluoric acids. With an estimated melting point of 1,218°F, aluminum has many benefits, including being relatively low-cost when compared to other meshes. Aluminum woven wire mesh is a popular choice for a wide range of applications in industries such as aerospace, automotive, marine, and electrical conductivity.

Applications: Manufacturing aircraft structural parts, Architectural, Extrusions, Doors, Shop fittings, Irrigation tubing

Specifications:

Wire Diameter

Mesh Size

Wire Diameter

Mesh Size

.0014″

325×325

.012″

30×30

.0016″

250×250

.014″

24×24

.0021″

200×200

.016″

20×20

.0026″

150×150

.017″

18×18

.0037″

120×120

.018″

16×16

.0045″

100×100

.020″

14×14

.005″

90×90

.023″

12×12

.0055″

80×80

.025″

10×10

.0065″

70×70

.028″

8×8

.0075″

60×60

.035″

6×6

.009″

50×50

.041″

5×5

.010″

32×32

.047″

4×4

.010″

35×35

.054″

3×3

.010″

40×40

.063″

2×2

Chemical Composition Limits Aluminum Wire Mesh Alloys (%)

Alloy

Aluminum

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Ga

1350

99.5

0.1

0.4

0.05

0.01

…

0.01

0.05

–

0.03

5052

Balance

0.25

0.4

0.1

0.1

2.2-2.8

0.15-0.35

0.1

–

–

5056

Balance

0.3

0.4

0.1

0.05-0.20

4.5-5.6

0.05-0.20

0.1

–

–

6061

Balance

0.40-0.8

0.7

0.15-0.40

0.15

0.8-1.2

0.04-0.35

0.25

0.15

–

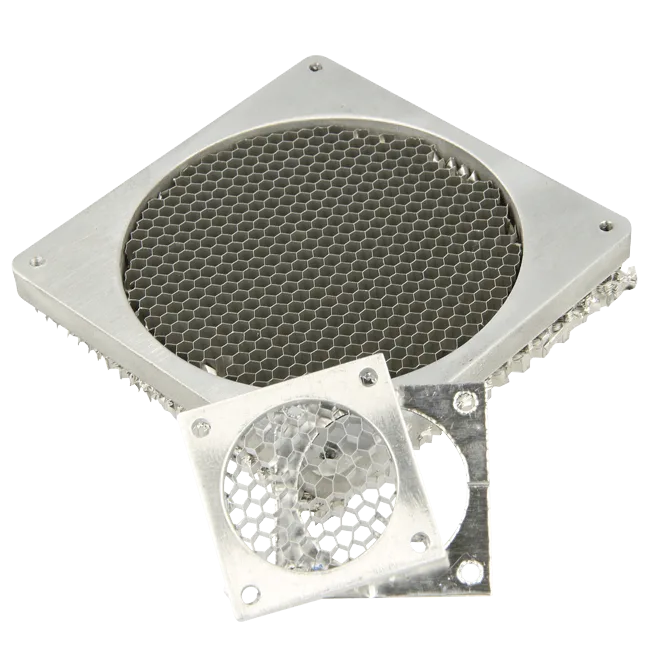

Aluminum Honeycomb Shield

aluminum-honeycomb-shield

Material: Aluminum

Purity: Al 99%, Can be Customized

Adhesive: Phenolic, or Equivalence

Thickness: 5~26mm

Get A Quote
More About Aluminum Honeycomb Shield

Description: Aluminum honeycomb is a lightweight material used mainly as a core for sandwich structures that carry shear loads. The honeycomb structure divides the air layer between the composite panels into numerous cells, which restricts the movement of air and prevents the propagation of heat and sound waves. As a result, honeycomb boards are great for insulation and soundproofing. When used in bonded composite sandwich panels, the material’s high strength-to-weight ratio and corrosion resistance make it ideal for doors, floors, furniture, galley and sanitary modules, interior panel partitions, and energy absorbers.

Applications: Aluminum Honeycombs are versatile materials widely used in various applications such as building curtain wall exterior wall cladding, interior decoration projects, billboards, shipbuilding, aviation manufacturing, indoor partitions, commodity display stands, commercial transport vehicles, container trucks, buses, trains, subways, and rail vehicles. These panels offer a lightweight yet durable solution for architectural and transportation industries, providing aesthetic appeal, structural integrity, and functional versatility across a range of construction and design projects.

Specifications

Item number

ALHC-1

ALHC-2

ALHC-3

ALHC-4

ALHC-5

ALHC-6

ALHC-7

Thickness(mm)

5

10

20

20

13.8

13.9

26.5

Cell size(mm)

3.2

3.2

3.2

4.8

6.3

6.3

6.3

Cell wall(mm)

0.025

0.025

0.025

0.038

0.064

0.064

0.064

Core density(g/cm3)

0.072

0

0.072

0.07

0.083

0.083

0.083

Item number

ALHC-8

ALHC-9

ALHC-10

ALHC-11

ALHC-12

ALHC-13

ALHC-14

Thickness(mm)

26.5

26.5

52.3

52.3

10

5

20

Cell size(mm)

6.3

6.3

6.3

6.3

6.3

13

13

Cell wall(mm)

0.064

0.064

0.064

0.064

0.064

0.1

0.1

Core density(g/cm3)

0.083

0.083

0.083

0.083

0.083

0.062

0.062

Electrical Properties

Electrical resistivity ( µOhmcm ): 2.67@20°C

Superconductivity critical temperature ( K ): 1.1750

Temperature coefficient ( K⁻¹ ): 0.00450 @0-100°C

Thermal emf against Pt (cold 0C – hot 100C) ( mV ): 0.42

Thermal Properties

Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ ): 23.500 @0-100°C

Latent heat of evaporation ( J g⁻¹ ): 10800

Latent heat of fusion ( J g⁻¹ ): 388.00

Specific heat ( J K⁻¹ kg⁻¹ ): 900.0 @25°C

Thermal conductivity ( W m⁻¹ K⁻¹ ): 237.00 @0-100°C

Mechanical Properties

Material condition: Soft / Hard

Poisson’s ratio: 0.345

Tensile modulus ( GPa ): 70.6

Tensile strength ( MPa ) ( Hard ): 130.00 – 195.00

Tensile strength ( MPa ) ( Soft ): 50.00 – 90.00

Yield strength ( MPa ) ( Hard ): 110.0 – 170.0

Yield strength ( MPa ) ( Soft ): 10.0 – 35.0



Description

Aluminum Foam is a lightweight, porous material composed primarily of aluminum metal with a cellular structure. This unique material is created through a process of foaming aluminum alloys, resulting in a lightweight structure with high strength and excellent energy absorption capabilities. Aluminum Foam finds applications in various industries, including automotive, aerospace, construction, and marine, where its properties make it ideal for impact and sound absorption, thermal insulation, and sound damping.

Aluminum Wire Mesh, on the other hand, is a versatile material made from woven or welded Aluminum Wires. It is known for its durability, corrosion resistance, and high tensile strength. Aluminum Wire Mesh is used in a wide range of applications, including filtration, screening, fencing, and architectural design. It provides effective protection against insects, rodents, and debris while allowing for airflow and visibility.

Related: All You Need to Know About Mesh Electrodes

Applications

Aluminum foam, wire mesh, and honeycomb structures find diverse applications across various industries:

  1. Building Construction: Aluminum honeycombs are utilized in weight-sensitive applications for their specific strength and energy absorption capacity in building curtain wall exterior wall hanging boards.
  2. Impact Absorption: Aluminum honeycombs filled with Expanded Polypropylene (EPP) foam enhance impact characteristics, improving their dynamic response and energy absorption capabilities.
  3. Shaping Technology: Steel meshes with varying opening ratios are used to shape aluminum foams during the foaming process, influencing the properties and structure of the resulting aluminum foam.
  4. Lightweight Solutions: Aluminum foam is lightweight and offers attributes like sound absorption, heat insulation, vibration damping, shock absorption, and electromagnetic wave properties, making it suitable for applications in shipbuilding, aviation manufacturing, and interior partitions.
  5. Transportation Industry: Aluminum foam, wire mesh, and honeycomb structures are employed in commercial transport vehicles, container trucks, buses, trains, subways, rail vehicles for impact protection due to their lightweight nature and energy absorption characteristics.

These materials play a crucial role in enhancing structural integrity, impact resistance, and functional versatility across a wide range of applications in construction, transportation, and industrial sectors.

Packaging

Our Aluminum Foam Mesh are clearly labeled externally to ensure efficient identification and quality control. We take great care to prevent any damage during storage or transportation.
