MetalsTek Engineering provides top-notch Titanium Sheets, Foils, and Ribbons/Strips that are carefully crafted from this sturdy and lightweight material renowned for its exceptional corrosion resistance. Our titanium sheets are versatile and find applications across various industries, serving as a reliable solution for diverse needs.
Material: Titanium and Titanium Alloys, CP Ti, Gr.1~9,
Density: 4.5~4.51 g/cc
Standard: ASTM B265, AMSE SB265, AMS 4911, ASTM F136, ASTM F67 etc.
Sizes: Sheet – Thick. 0.5~5mm * Width<1,000mm * Length<3,000mm
Foil – Thick. >0.05mm * Width 10~299mm * Length
Strip – Thick. 0.1~0.8mm * Width 50~300mm * Length
| Product | Titanium and Titanium Alloy Sheet |
| Material | Gr.1, Gr.2, Gr.3, Gr.4, Gr.5, Gr.7, etc. C.P. Ti, Ti-6Al-4V, Ti-6Al-4V ELI, Ti-6242, Ti-0.3Mo-0.8Ni, Ti 15333, Ti-38644, Ti-3Al-2.5V and Ti-0.2Pd etc.. |
| Standard | ASTM, AMS, AMSE, MIL, JIS, ASTM B265, ASME SB265, AMS 4911, ASTM F67, ASTM F136etc. |
| Processing | Hot Rolled, Cold Rolled |

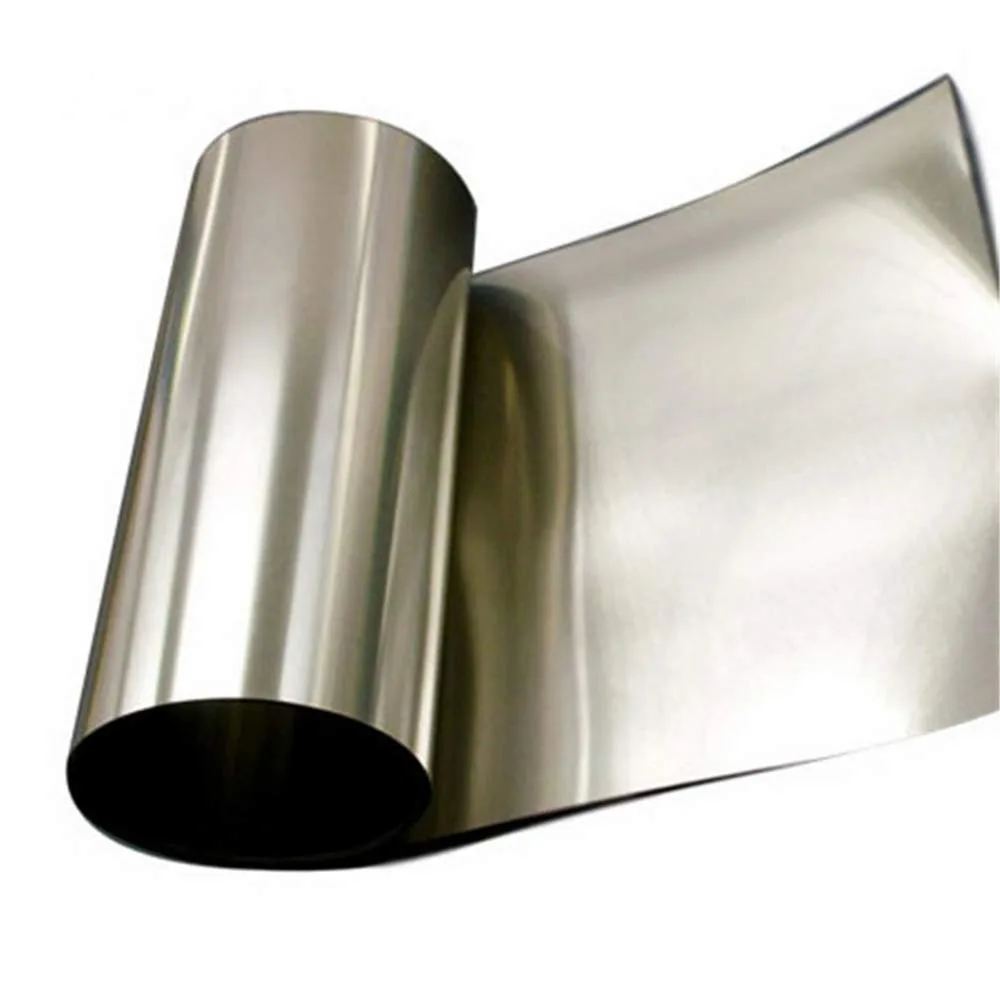

Material: Titanium and Titanium Alloys, CP Ti, Gr.1~9,
Density: 4.5~4.51 g/cc
Standard: ASTM B265, AMSE SB265
Surface: Cold Rolling
Sizes: Foil – Thick. >0.005mm * Width 10~299mm * Length
Sheet – Thick. 0.5~5mm * Width<1,000mm * Length<3,000mm
Strip – Thick. 0.1~0.8mm * Width 50~300mm * Length
Material: Titanium and Titanium Alloys, CP Ti, Gr.1~9,
Density: 4.5~4.51 g/cc
Standard: ASTM B265, AMSE SB265
Surface: Cold Rolling
Sizes: Strip – Thick. 0.1~0.8mm * Width 50~300mm * Length
Sheet – Thick. 0.5~5mm * Width<1,000mm * Length<3,000mm
Foil – Thick. >0.05mm * Width 10~299mm * Length
Material: Titanium, Ti
Purity: Ti>99.9%
Grade: Ti-G1, Ti-G2
Size: Foil – Thick. 0.005mm~0.5mm * Width 10~300mm * Length
Plate – Thick. 0.3~4.5mm * Width 100~1,000mm * Length 200~1,500mm
Other: Medical Grade Titanium Can be Customized in Many Shapes
| Physical Prop. | Tensile Strength | Yield Strength | Elongation | Section Shrinkage |
|---|---|---|---|---|
| Unit | Mpa | Mpa | % | % |
| Ti-G1 | 240 | 170 | 25 | 30 |
| Ti-G2 | 345 | 275 | 20 | 30 |
| Type | N≤ | C≤ | H≤ | Fe≤ | O≤ | Others≤ |
|---|---|---|---|---|---|---|
| Ti-G1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 0.4 |
| Ti-G2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.4 |
Medical Grade Titanium has been widely used in the pharmaceutical industry, surgical instruments, and human implants for many years, both in the US and around the world, with great success. This specialized type of titanium is often utilized in medical devices, prostheses, or therapeutic devices that require an elastic modulus like that of natural bone.
Applications of Medical Grade Titanium
Medical Grade Titanium Plates are used in surgery, which includes:
-Orthopedic pins and screws
-Orthopedic cables
-Ligature clips
-Surgical staples
-Springs
-Orthodontic appliances
-In joint replacements
-Cryogenic vessels
-Bone fixation devices

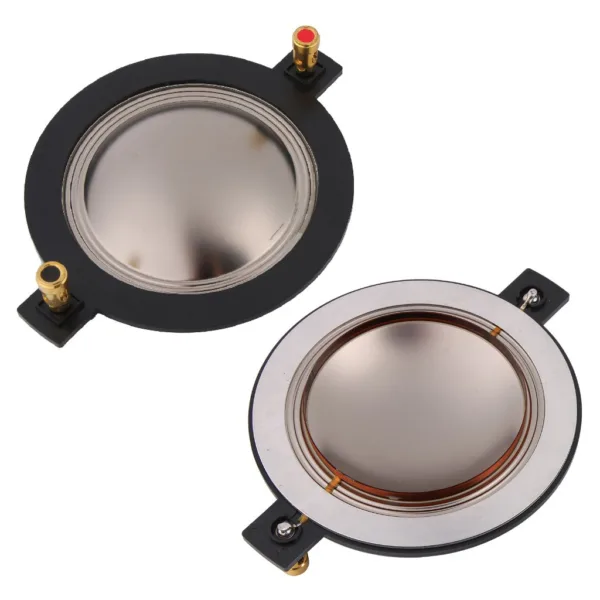

Material: Titanium, Ti
Type: 25/34/44/51/72/99 Cores
Color: Natural Color, Blue Color
Size: Tailored Sizes, HIgh Pitch Titanium Film
Features: Lightweight, Rigid, Sensitive to high-Frenquency Response
Applications: Speakers, Voice Coil
Titanium film, made of titanium foil material, is lightweight and inexpensive, widely used in various types of audio speakers. Titanium film has high frequency response, rich details, beautiful sound quality, and more delicate flat line sound.
Titanium alloy natural color titanium film
Lightweight and rigid, with sensitive high-frequency response and outstanding analytical power, it is prone to auditory fatigue. But the victory lies in its strong sense of power and affordability, which perfectly matches the performance characteristics and has a huge market share.
Blue film belongs to titanium alloy
After special oxidation treatment, blue or other colors are obtained, mainly to reduce the auditory fatigue of ordinary titanium films. The sound is relatively soft and does not lose its sound pressure level, suitable for advanced users who have a certain understanding of the sound.
Material:Titanium film
Model:25 cores -25.5 cores -34 cores -34.4 cores -38.5 cores -44 cores -44.4 cores -51.2 cores -65 cores -72 cores -75 cores -99 cores
Ball top height:(4.5-5-6.5-7.5-8.5-8.8-10-10.5-11-12-13.4-15.5-18-19.5) mm, supporting mass customization
Lace pattern:No flower, pressed lace, star pattern, single ring edge, double ring edge, triple ring edge, small diamond edge, large diamond edge, sun edge, spiral edge, dot edge, dashed edge, twill edge, trapezoidal edge, leaf, earth
Features:Crisp and bright, with high cost-effectiveness, lightweight and good rigidity, sensitive high-frequency response, and outstanding analytical power
Application:Speakers, speakers, etc
Titanium Sheets or Foil is a thin, flexible sheet made from titanium, a strong and lightweight material with excellent corrosion resistance. Due to their unique properties, Titanium Sheets or Foils are used in various industries and applications.
| Type | Properties | Metric | English |
|---|---|---|---|
| Descriptive Properties | Titanium, Ti | 100% | 100% |
| CAS Number | 7440-32-6 | 7440-32-6 | |
| Physical | Density | 4.50 g/cc | 0.163 lb/in³ |
| Mechanical Properties | Hardness, Brinell | 70 | 70 |
| Hardness, Vickers | 60 | 60 | |
| Tensile Strength, Ultimate | 220 MPa | 31900 psi | |
| Tensile Strength, Yield | 140 MPa | 20300 psi | |
| Elongation at Break | 54% | 54% | |
| Modulus of Elasticity | 116 GPa | 16800 ksi | |
| Poisson Ratio | 0.32 | 0.32 | |
| Electrical Properties | Electrical Resistivity | 0.0000554 ohm-cm | 0.0000554 ohm-cm |
| Magnetic Susceptibility | 1.25e-6 | 1.25e-6 | |
| Critical Magnetic Field Strength, Oersted | 56 | 56 | |
| Critical Superconducting Temperature | 0.360 - 0.440 K | 0.360 - 0.440 K | |
| Thermal Properties | Heat of Fusion | 435.4 J/g | 187.3 BTU/lb |
| CTE, linear | 8.90 µm/m-°C | 4.94 µin/in-°F | |
| CTE, linear | @Temp. 20.0 - 100 °C | @Temp. 68.0 - 212 °F | |
| CTE, linear | 10.1 µm/m-°C | 5.61 µin/in-°F | |
| Specific Heat Capacity | @Temperature 1000 °C | @Temperature 1830 °F | |
| Specific Heat Capacity | 0.528 J/g-°C | 0.126 BTU/lb-°F | |
| Thermal Conductivity | 17.0 W/m-K | 118 BTU-in/hr-ft²-°F | |
| Melting Point | 1650 - 1670 °C | 3000 - 3040 °F | |
| Optical Properties | Emissivity (0-1) | 0.63 | 0.63 |
Some of the important applications of Titanium Sheets and Foil include:
Titanium Sheet Foil is a remarkably versatile material that is used in numerous industries such as aerospace, biomedical, automotive, consumer goods, and industrial manufacturing. This material is highly valued for its distinct properties such as high strength, low density, and excellent corrosion resistance, all of which make it an essential material for various applications. To summarize, Titanium Sheet Foil is an indispensable material that offers exceptional properties for a wide range of industrial applications.
Our Titanium Sheets and Foils are clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
