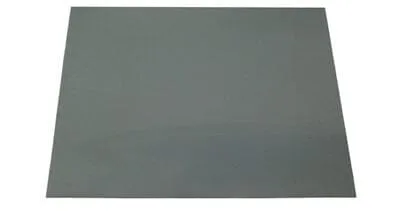

MetalsTek manufactures tungsten flat products with thicknesses spanning from 0.060″ to over 1.00″. Material within the range of 0.060″ to 0.090″ in thickness is designated as a sheet, while material measuring 0.10″ and larger is classified as a plate. Tungsten sheets find diverse applications, including the creation of sintering boats, integration as components in high-temperature furnaces, and deployment as heat shields.
Tungsten sheets exhibit exceptional high-temperature resistance, hardness, and density. As a global provider of high-quality tungsten sheets, MetalsTek Engineering offers a diverse range of surface treatments: hot-rolled alkaline cleaning, electrolytic polish, machined, or polished.
Pure tungsten, characterized by its hardness, lustrous appearance, and silvery-white hue, boasts the highest melting point, lowest vapor pressure, and the highest tensile strength among all elements. Its impressive heat resistance makes tungsten a staple in high-temperature applications, while its excellent electrical conductivity lends itself to widespread use in TFT-LCD screens.
| Product | Tungsten Sheet | |||
| Size | Length: 10-1,000mm, Width: 10-500mm, Thickness: 0.05-3mm (Thickness over 3mm, please refer to Tungsten Plate) | |||
| Material | Tungsten | |||
| Purity | W≥99.95% | |||
| Density | 18.2-19.3 g/cc | |||
| Standard | ASTM B760 | |||
| Surface | Rolling surface, Chemical cleaned, Grinding |
Tungsten sheets find diverse applications across several industries due to their exceptional physical properties. Here are some common applications of tungsten sheets:
The unique combination of tungsten’s properties, including high density, melting point, and resistance to corrosion and radiation, makes tungsten sheets indispensable in a wide range of high-tech and demanding applications.
Our Tungsten Sheet are clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
