Target Bonding

At MetalsTek Engineering, we specialize in providing high-quality sputtering target bonding services tailored to meet diverse industry needs. Our expertise includes machining bonding backing plates in various shapes and materials to ensure optimal performance and reliability for your specific applications.

Understanding Target Bonding: A Comprehensive Guide for Optimal Sputtering Performance

In the world of advanced material deposition, the subtle nuances can make a significant difference in outcomes. One such critical factor is target bonding—a process that, while often overlooked, plays a pivotal role in the efficiency and longevity of sputtering targets. For industries reliant on precise material coatings, understanding the intricacies of target bonding is not just beneficial but essential.

Proper target bonding is more than just a technical necessity—it’s a cornerstone of successful sputtering operations. Whether you’re a purchasing manager, a research scientist, or an engineer, ensuring the right bonding method for your sputtering targets can significantly enhance your project’s outcomes. So, follow MetalsTek’s lead and take the time to understand your bonding options and choose the one that best fits your needs, ensuring top-notch performance and durability in your advanced material applications.

Table of Contents

I. What is Target Bonding?

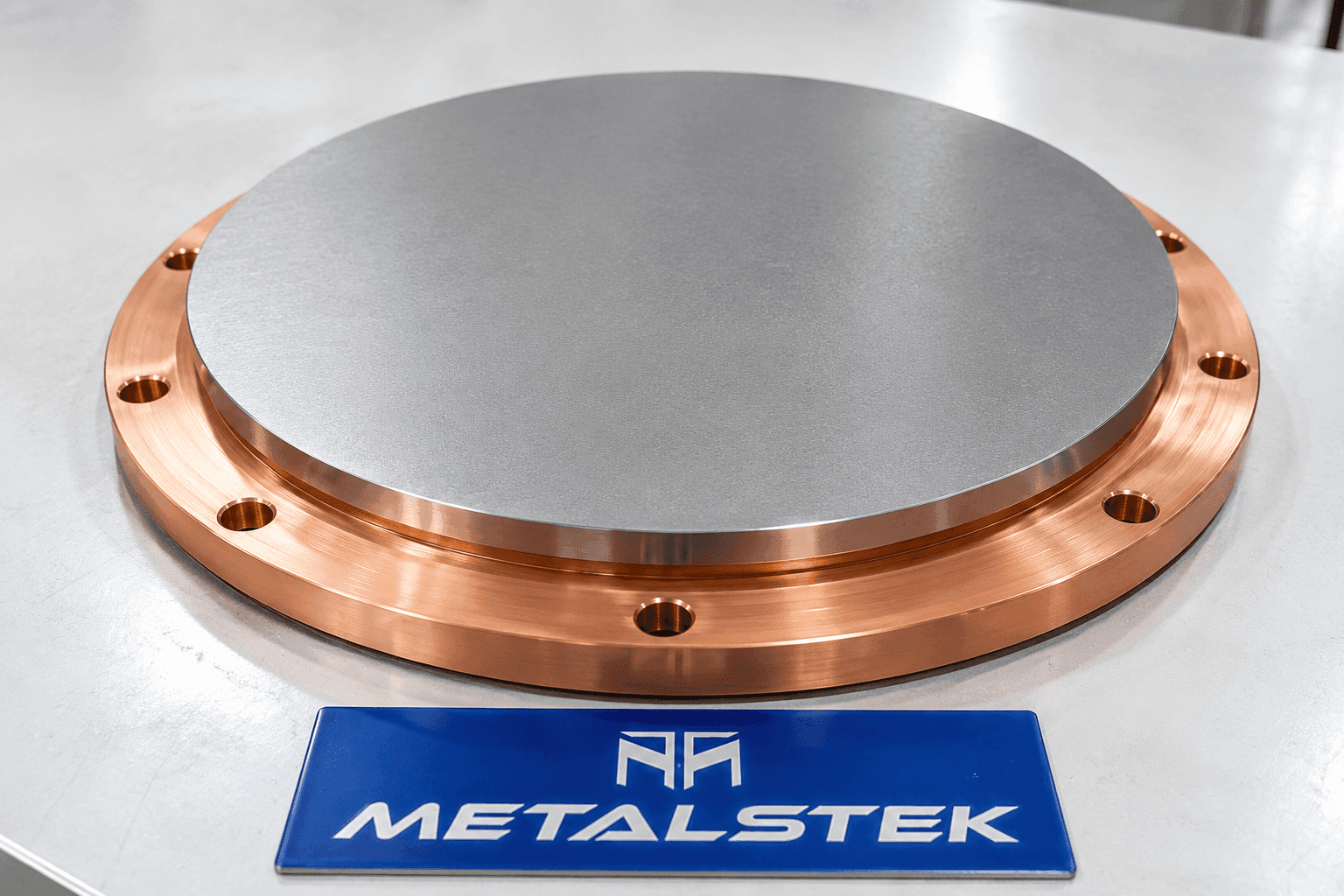

Target bonding is the process of attaching a sputtering target to a backing plate, ensuring optimal heat transfer and mechanical stability during the sputtering process. This bonding is crucial for maintaining the structural integrity and performance of the sputtering target, preventing issues such as cracking or debonding during operation. Essentially, without proper bonding, the efficiency and durability of the sputtering target are significantly compromised.

II. Main Types of Target Bonding

Indium Bonding

Process: Indium bonding involves using a layer of indium to attach the sputtering target to the backing plate. Indium is known for its excellent thermal conductivity and ductility, which makes it an ideal material for this purpose. The process typically involves heating the indium to a semi-liquid state, applying it between the target and the backing plate, and allowing it to cool and solidify, forming a strong bond.

Benefits:

  • High Thermal Conductivity: Indium’s excellent thermal properties ensure efficient heat dissipation during sputtering, preventing overheating and enhancing target life.
  • Flexibility: Indium’s malleable nature allows it to accommodate thermal expansion and contraction, reducing stress on the target and minimizing the risk of cracking.
  • Strong Mechanical Bond: Indium’s ductility ensures a robust bond that maintains its integrity under varying operational conditions.

Ideal Use Cases:

  • High-Power Applications: Where efficient heat dissipation is critical.
  • Applications with Frequent Temperature Changes: Due to its ability to handle thermal expansion.

Elastomer Bonding

Process: Elastomer bonding uses a rubber-like material to create a flexible bond between the sputtering target and the backing plate. The elastomer is applied in a liquid or semi-liquid form and allowed to cure, forming a resilient and flexible bond that can absorb vibrations and accommodate thermal movements.

Benefits:

  • Vibration Dampening: Elastomer’s rubbery nature provides excellent vibration dampening, protecting the target from mechanical shocks.
  • Thermal Expansion Handling: Elastomer materials’ flexibility allows them to absorb and adjust to thermal expansion and contraction cycles without stressing the target.
  • Stress Reduction: Helps reduce the mechanical stress on the target during operation, enhancing its longevity.

Ideal Use Cases:

  • Environments with Vibrations: These include manufacturing plants with heavy machinery.
  • Applications Requiring Stress Reduction: Particularly useful where the target undergoes frequent mechanical or thermal stress.

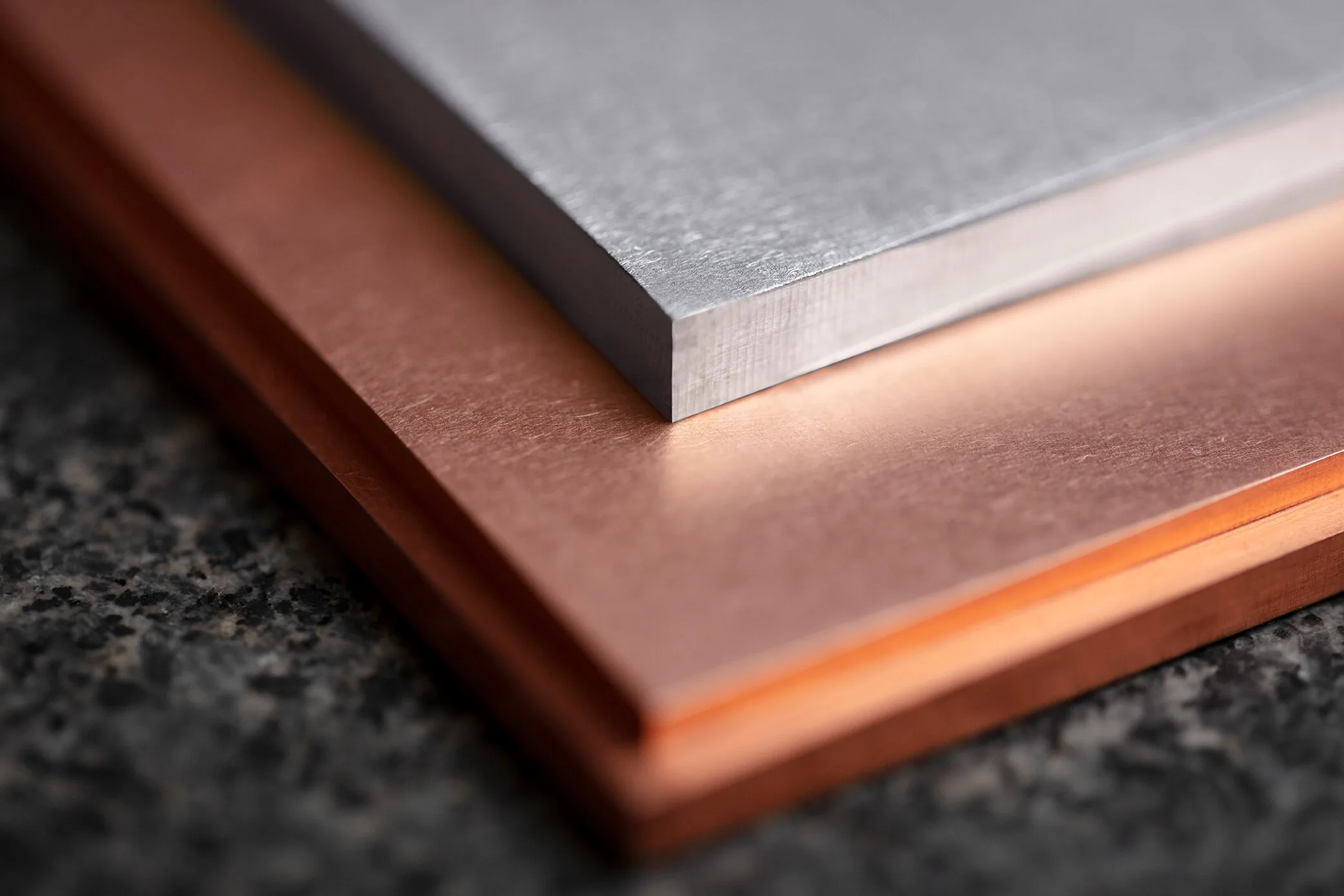

Copper Backing Plates and OFHC Copper Bonding

Process: Copper backing plates support the sputtering target, providing a base with excellent thermal and electrical conductivity. OFHC (Oxygen-Free High Conductivity) copper is often preferred due to its high purity and superior performance. The bonding process involves attaching the sputtering target to the copper plate using methods like soldering, brazing, or mechanical fastening.

Benefits:

  • Enhanced Thermal Conductivity: Copper’s high thermal conductivity ensures efficient heat dissipation, crucial for high-performance sputtering applications.
  • Electrical ConduCopper’s Copper’s excellent electrical properties are beneficial in applications where electrical conductivity is essential.
  • Purity and Performance: OFHC copper provides minimal impurities, enhancing the overall efficiency and reliability of the sputtering target assembly.

Ideal Use Cases:

  • High-Precision Applications: Such as semiconductor manufacturing.
  • High-Temperature Environments: Where efficient heat dissipation is necessary.

III. Why You Need Target Bonding

Proper target bonding offers several key benefits:

  • Enhanced Thermal Conductivity: Efficient heat dissipation prevents overheating and extends target life.
  • Improved Mechanical Stability: Reduces the risk of target cracking or debonding, ensuring consistent performance.
  • Prolonged Target Life: Minimizes wear and tear, making the target last longer and perform better.
  • Better Overall Performance: Optimizes the sputtering process, leading to higher quality coatings and more reliable outcomes.

IV. Factors to Consider When Selecting Proper Target Bonding

When selecting the proper target bonding method, there are several key factors to consider:

Material Compatibility

The choice of bonding method depends on the compatibility between the sputtering target material and the backing plate material. Factors like coefficients of thermal expansion, melting points, and reactivity must be taken into account to ensure a stable and durable bond.

Operating Temperature

The maximum operating temperature of the sputtering process is crucial in determining the appropriate bonding method. Indium bonding is suitable for lower temperatures up to around 150°C, while elastomer bonding or silver epoxy bonding is recommended for higher temperature applications exceeding 150°C.

Thermal and Electrical Conductivity

Effective heat dissipation and electrical conductivity between the target and backing plate are essential for optimal sputtering performance. Metallic bonding methods like indium or silver epoxy generally provide better thermal and electrical conductivity compared to non-metallic bonding techniques.

Target Geometry and Size

The size and shape of the sputtering target can influence the bonding method chosen. Larger targets or targets with complex geometries may require specialized bonding techniques to ensure uniform bonding and prevent warping or cracking.

Cost and Reusability

The cost of the bonding materials and the potential for reusing the backing plates after target depletion should be considered. Indium bonding often allows for easier separation and reuse of backing plates, while elastomer or epoxy bonding may be more cost-effective for single-use applications.

Vibration and Stress Resistance

The bonding method should provide sufficient mechanical strength and vibration dampening to withstand the stresses of the sputtering process. Elastomer bonding, for instance, offers good vibration-dampening properties, which can be beneficial for certain applications.By carefully evaluating these factors, manufacturers can select the most appropriate target bonding method to ensure optimal sputtering performance, target longevity, and overall process efficiency.

V. Application and Industry Relevance

Industries such as aerospace, solar energy, semiconductor manufacturing, and research laboratories greatly benefit from effective target bonding. For example, in semiconductor manufacturing, where precision and reliability are paramount, proper target bonding ensures that the deposition processes are both efficient and defect-free. Similarly, in aerospace applications, the durability and performance of coatings are significantly enhanced by using bonded targets.

VI. Common Misconceptions About Target Bonding

There are a few common misconceptions about target bonding that should be addressed:

1. Bonding is Only Necessary for Large Targets

Some believe that target bonding is only required for large sputtering targets or those with complex geometries. However, bonding can be beneficial for targets of various sizes and shapes to improve thermal management, prevent cracking or warping, and ensure consistent deposition rates.

2. All Bonding Methods are Suitable for High Temperatures

Different bonding methods have different temperature limitations. While elastomer bonding and silver epoxy bonding can withstand higher temperatures (up to 250°C or more), indium bonding is only suitable for lower temperatures up to around 150°C. Using an inappropriate bonding method for the operating temperature can lead to bond failure.

3. Bonding Compromises Electrical Conductivity

A common misconception is that the bonding layer between the target and backing plate can negatively impact electrical conductivity. In reality, metallic bonding methods like indium or silver epoxy provide excellent electrical conductivity, ensuring efficient sputtering performance.

4. Bonding is a One-Time Process

While bonding is a critical step, it is not a one-time process. Regular inspection and maintenance of the bonded target assembly are essential to detect any signs of degradation, such as cracking, delamination, or warping, and to perform preventive maintenance or replacement as needed.

5. All Backing Plates are Reusable

The reusability of backing plates depends on the bonding method used and the condition of the backing plate after target depletion. While indium bonding often allows for easier separation and reuse of backing plates, other bonding methods may not be as conducive to reuse, and the backing plate must be carefully inspected for damage before rebonding.

By addressing these common misconceptions, we can better understand the nuances of target bonding and make informed decisions to optimize the sputtering processes for improved performance, reliability, and longevity.

VII. Tips for maximizing the performance and lifespan of Target Bonding

Here are some tips for maximizing the performance and lifespan of target bonding in sputtering applications without duplicating previous content:

Proper Curing and Bonding Procedures

Follow the recommended curing procedures, temperatures, and durations for the chosen bonding method strictly. Inadequate curing can lead to weak bonds and premature failure.

Stress Relief Techniques

Employ stress relief techniques, such as annealing or controlled cooling rates, to minimize residual stresses in the bonded assembly, which can cause delamination or cracking over time.

Protective Coatings

Consider applying protective coatings or barrier layers on the bonding surfaces to prevent chemical interactions or diffusion between the target, bonding material, and backing plate.

Uniform Bonding Pressure

Ensure uniform pressure is applied during the bonding process to achieve consistent bond strength across the entire target-backing plate interface and prevent localized stress concentrations.

Minimizing Contaminants

Take precautions to minimize the presence of contaminants, such as dust, moisture, or oils, during the bonding process, as these can compromise the bond integrity.

Handling and Storage

Implement proper handling and storage procedures for bonded target assemblies to prevent physical damage, exposure to extreme temperatures, or other environmental factors that could degrade the bond.

Periodic Performance Monitoring

Monitor the performance of the bonded target assembly regularly, including parameters like deposition rate, uniformity, and target erosion patterns, to detect any signs of bond degradation or failure.

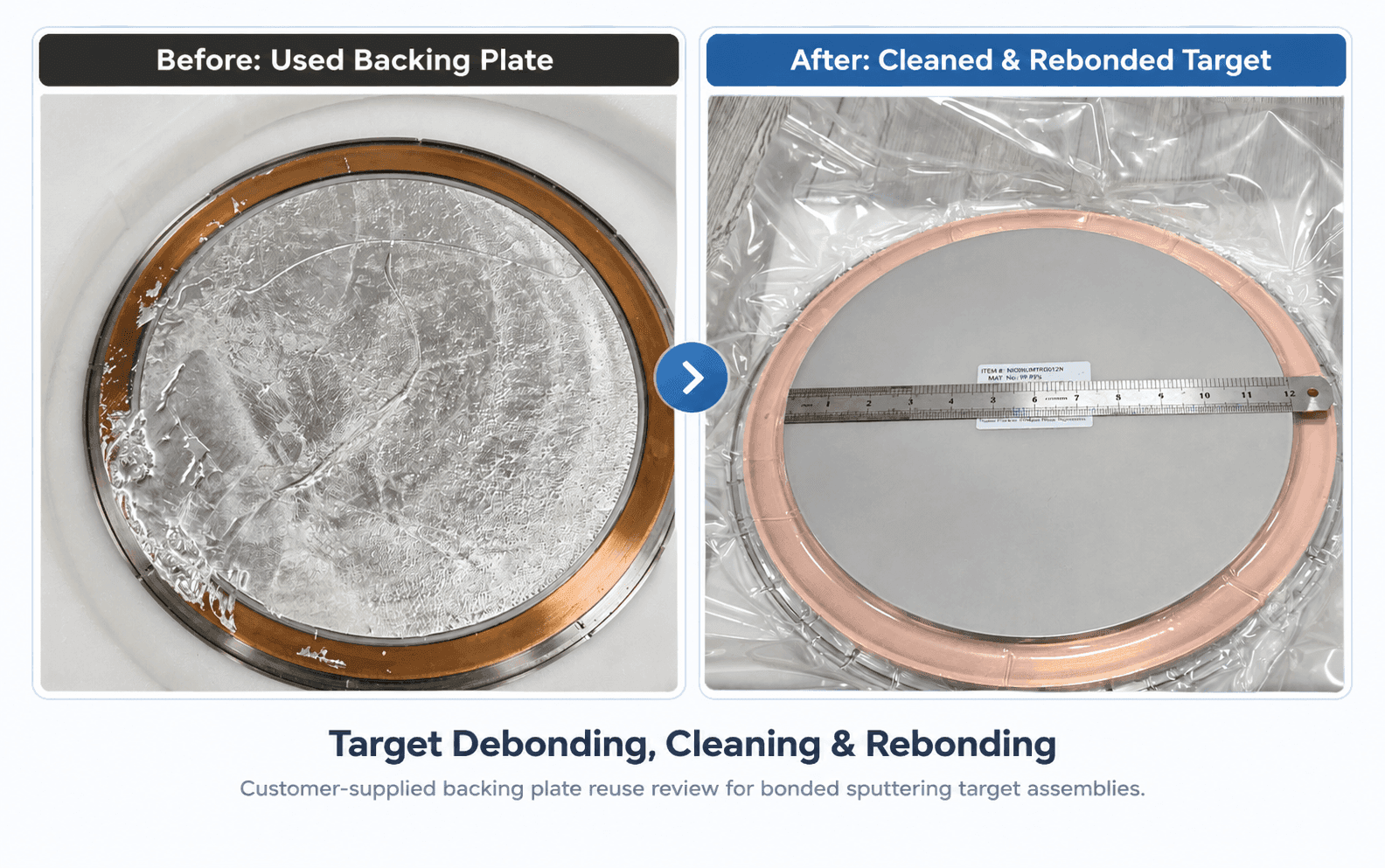

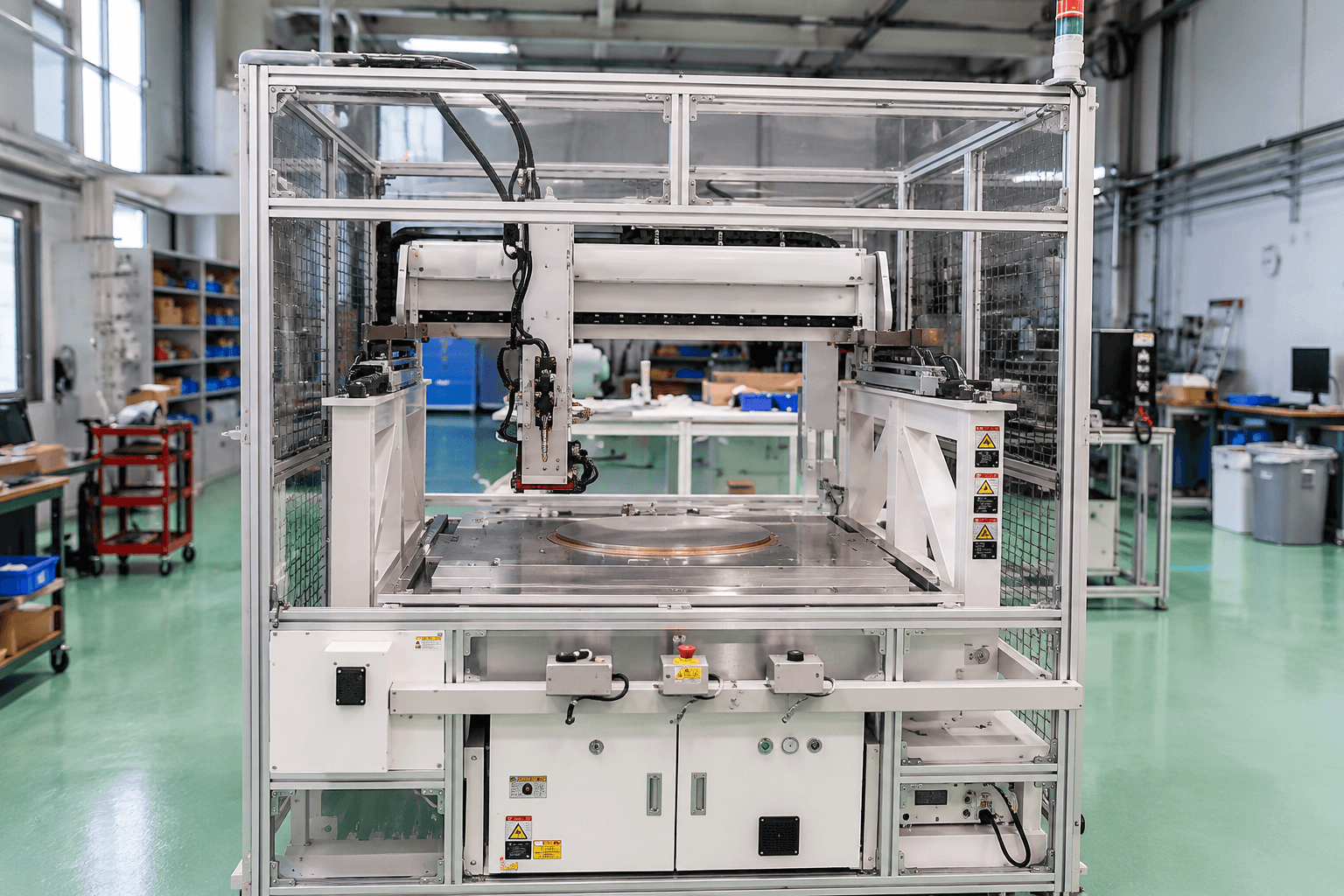

Reusability Considerations

If reusing backing plates, carefully inspect them for any damage or residual bonding material before rebonding, and follow recommended cleaning and preparation procedures. By addressing these factors, manufacturers can enhance their target bonding solutions’ reliability, consistency, and longevity, ultimately improving the efficiency and productivity of their sputtering processes.

VIII. Conclusion:

Selecting the proper target bonding method involves comprehensively evaluating thermal conductivity, mechanical stability, flexibility, vibration dampening, electrical conductivity, material compatibility, application specificity, cost, operational temperature range, and environmental factors. By carefully considering these factors, you can ensure that your sputtering targets perform optimally, producing high-quality material deposition and efficient, reliable operations. Making an informed choice in target bonding enhances performance and drives innovation and excellence in your advanced material applications.
