MetalsTek Engineering is a worldwide manufacturer and supplier of Iridium Sputtering Targets and products. We can provide high-purity iridium products with short lead times and competitive prices.

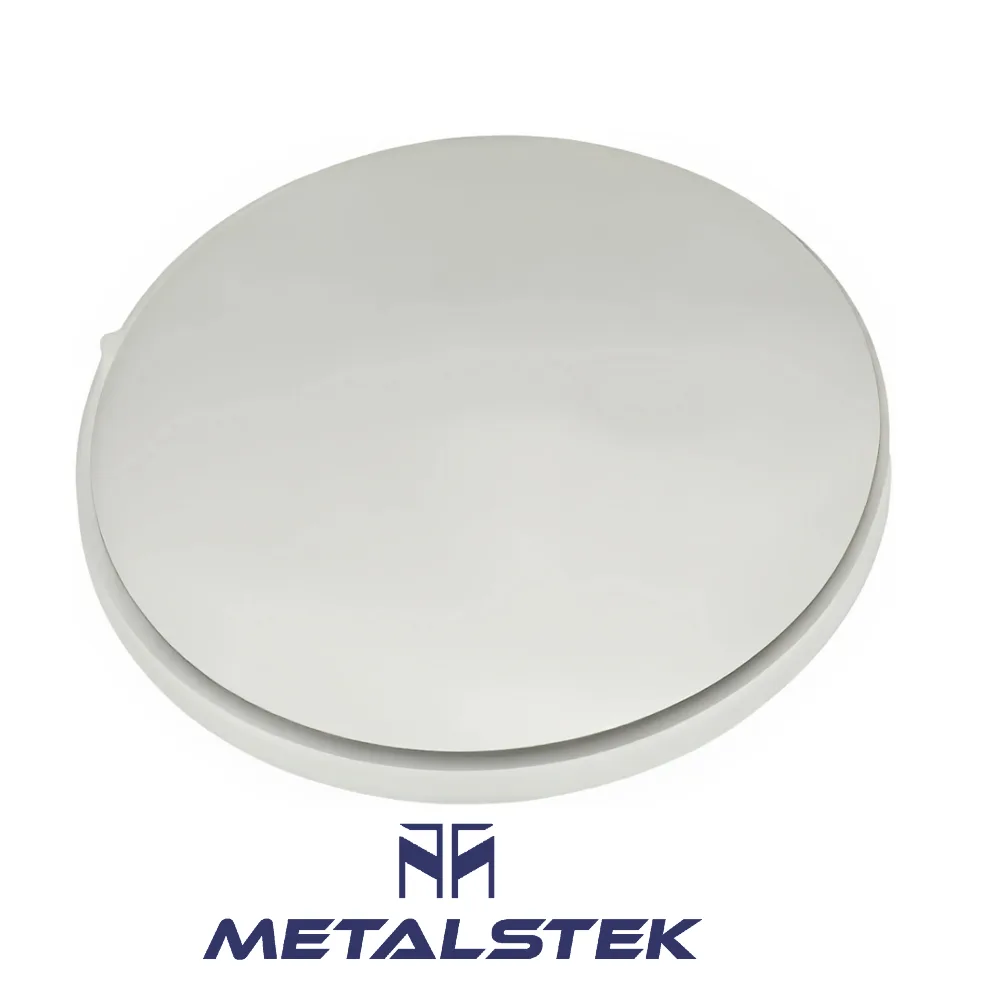

Material: Iridium 99.9%~99.999%
Properties: Silvery White Metallic, 22.42g/cc Density, 2,410°C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤32”
Bonding: Indium or Elastomer Bonding Recommended

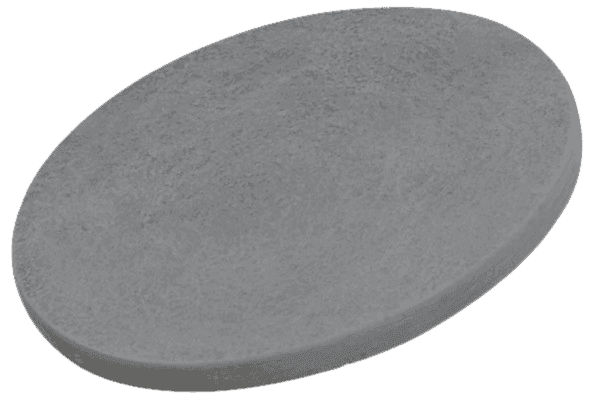

Material: Iridium Oxide 99.9%~99.99%
Properties: Black, 11.7g/cc Density,1,100°C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤32”
Bonding: Indium or Elastomer Bonding Recommended
Material: Platinum Iridium 99.9%~99.999%
Properties: Silver Metallic, 387.3 M.W.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤32”
Bonding: Indium Bonding Recommended

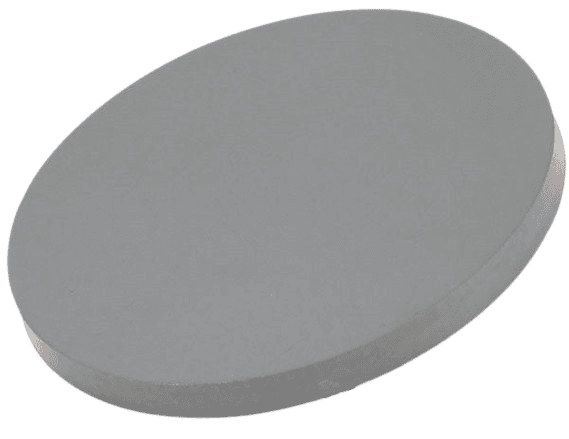

Material: Iridium Manganese 99%~99.999%
Properties: Gray Metallic, 117°C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤32”
Bonding: Indium Bonding Recommended
Iridium is a rare metal that falls under the platinum elements in the Periodic Table. Its unique characteristics include a high melting point of 2,410°C, a density of 22.42 g/cc, and a vapor pressure of 10-4 Torr at 2,380°C. Its silvery-white appearance and exceptional corrosion resistance make it a popular strengthening component in platinum alloys. It is also used in equipment designed for extreme heat conditions. It is evaporated under vacuum to make particle and surface modification coatings, data storage devices, and fuel cells.
Iridium Sputtering Targets are utilized in a broad spectrum of applications due to iridium’s unique properties. The primary applications include:
Iridium Sputtering Targets, with their high purity and customizable forms, play a crucial role in advancing technology across various sectors, including electronics, aerospace, automotive, and renewable energy. Their ability to produce high-quality, durable films makes them indispensable in developing cutting-edge technologies and devices.
Our Iridium Sputtering Targets are vacuum sealed and clearly labeled externally to ensure efficient identification and quality control. To prevent any damage during storage or transportation, we take great care.
