MetalsTek Engineering is a worldwide manufacturer and supplier of Magnesium and Magnesium-based Sputtering Targets. We specialize in producing high purity thin film coating materials with the highest possible density and smallest possible average grain sizes for use in solar cells, semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications.

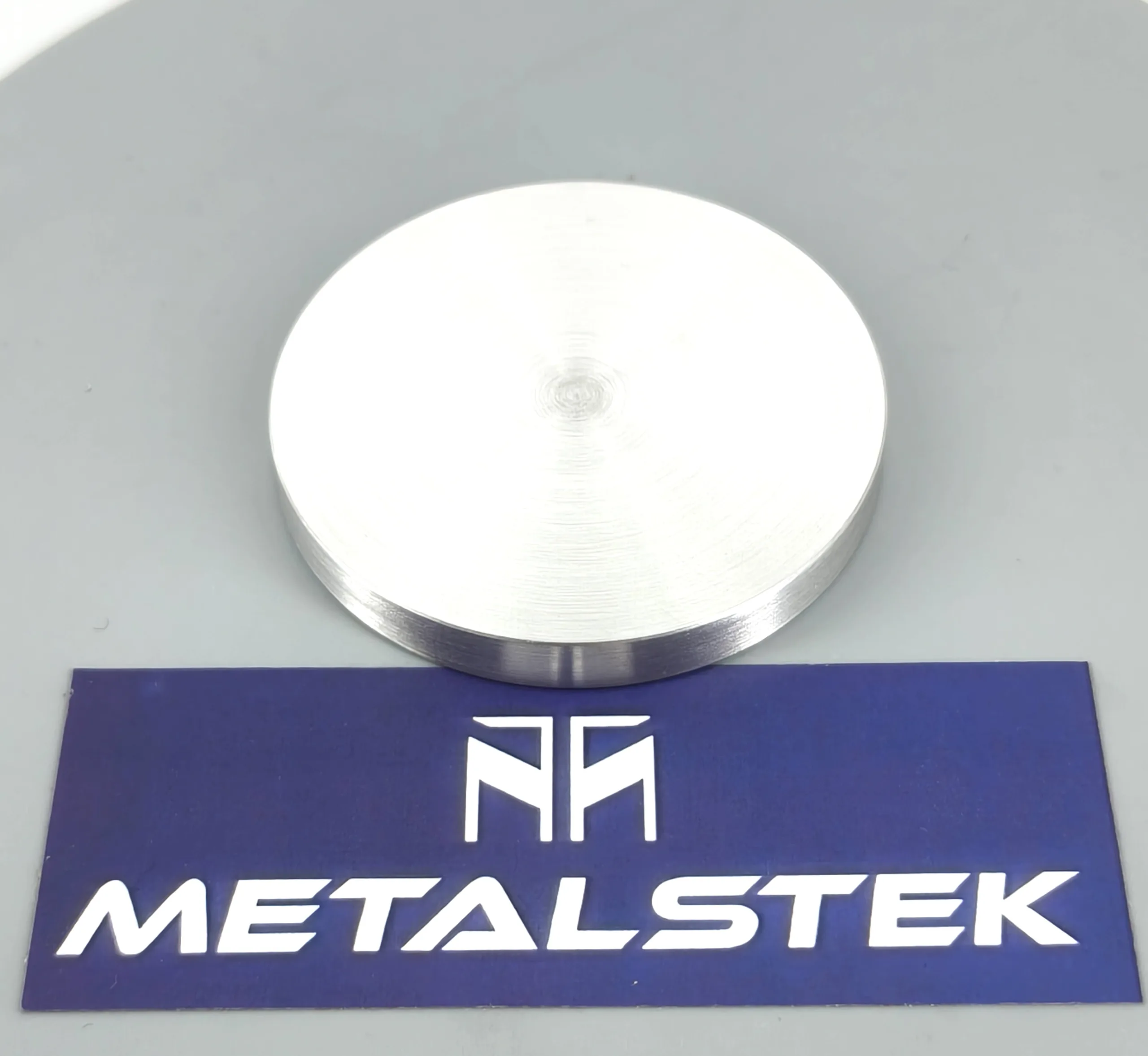

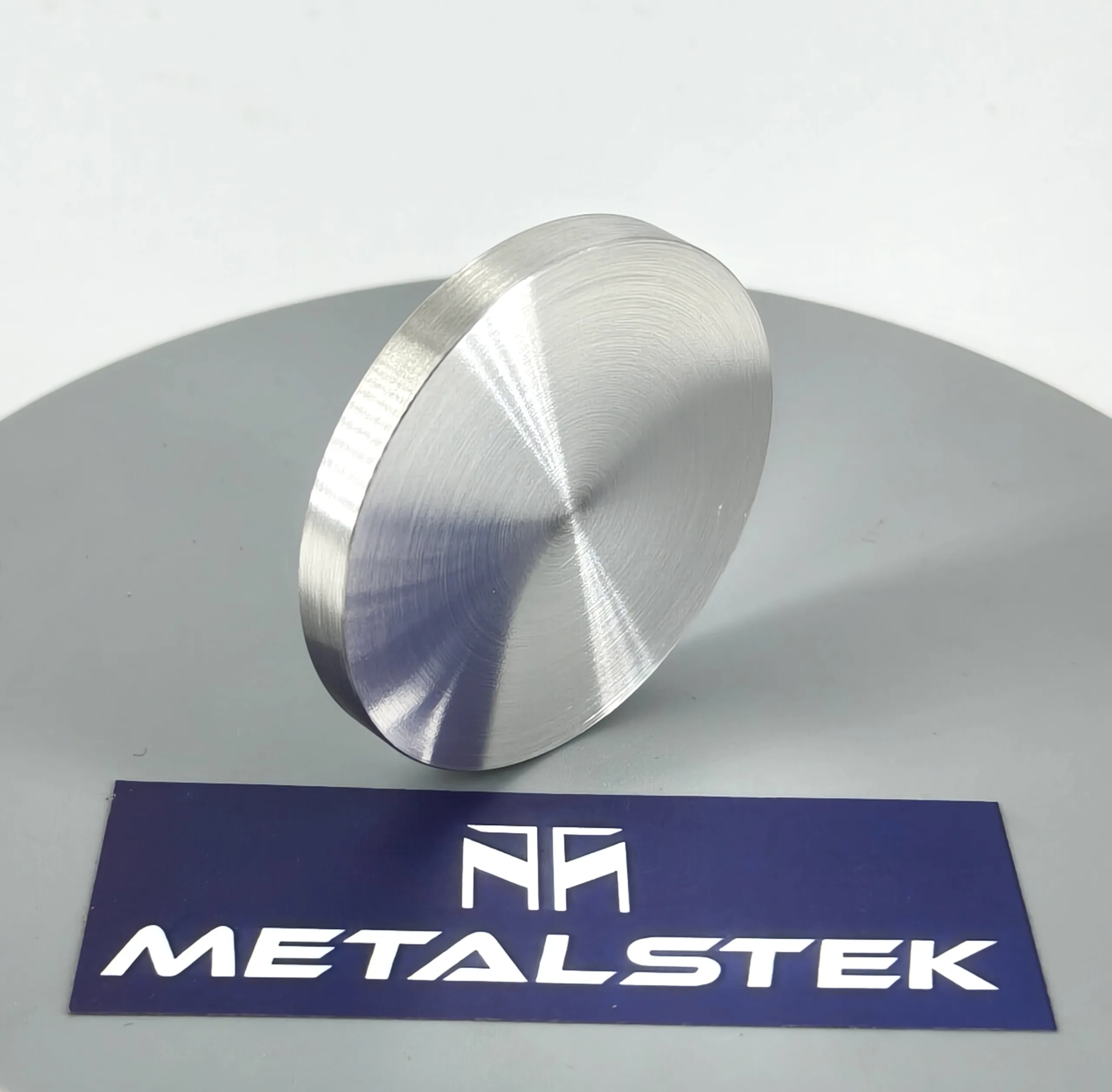

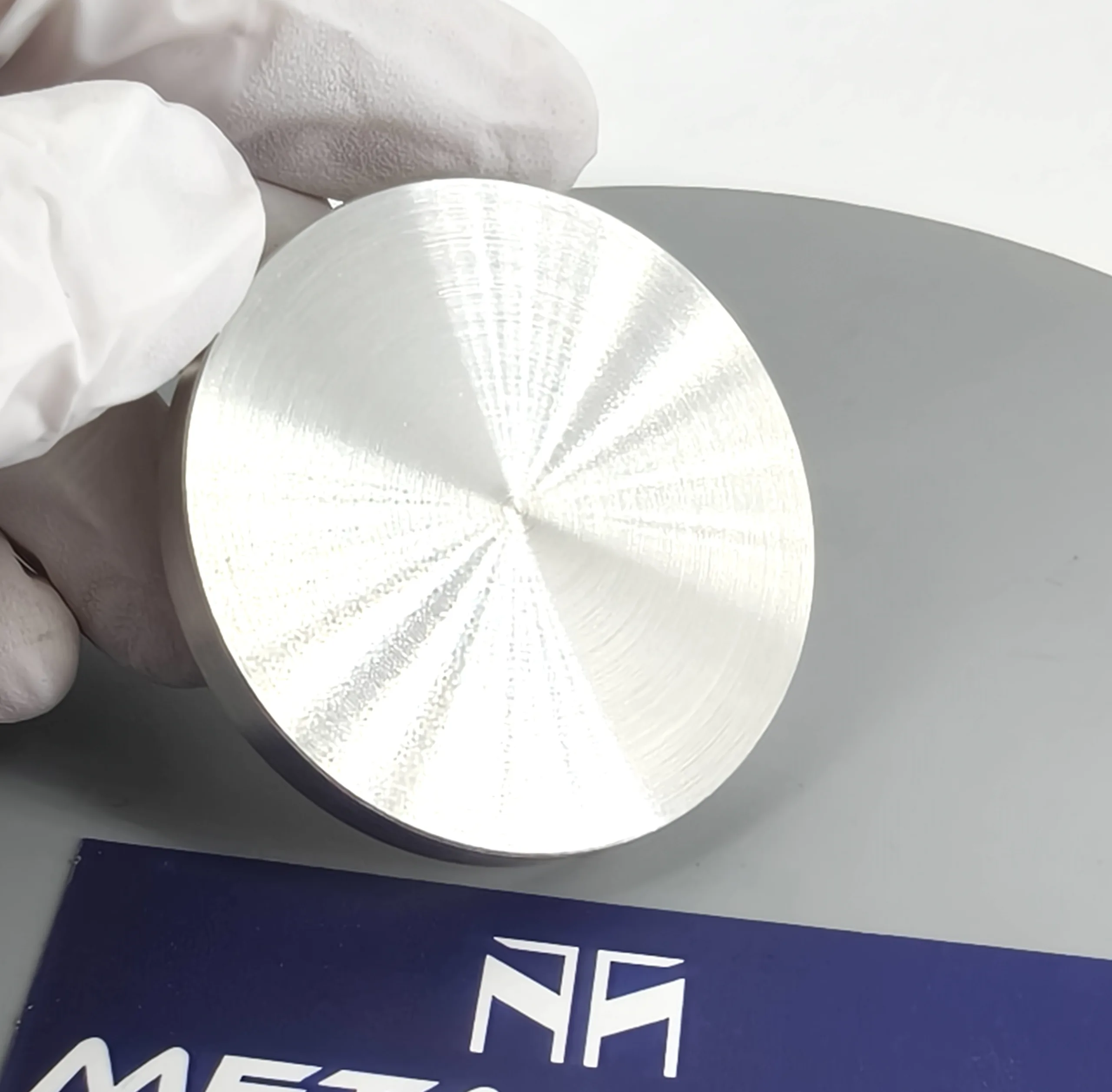

Material: Magnesium
Purity: 99.9%~99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Aluminum Magnesium Alloy
Purity: 99.9%~99.9995%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Magnesium Oxide
Purity: 99.9%~99.99%
Properties: 3.58g/cc Density, 2,852 °C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Magnesium Fluoride
Purity: 99.9%
Properties: ≈3.15g/cc Density, 1,263 °C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Magnesium Sulfide
Purity: 99.9%
Properties: 2.84g/cc Density, ≈2,000 °C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Magnesium Silicide
Purity: 99.9%
Properties: 1.99g/cc Density, 1,102 °C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Magnesium Diboride
Purity: 99.9%
Properties: 2.57g/cc Density, 830 °C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤12” * Length≤14”
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Magnesium Diboride
Purity: 99.9% ~ 99.999%.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Material: Magnesium Diboride
Purity: 99.9% ~ 99.999%.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Standard Size: Dia.1”, 2”, 3”, 4”, 5”, 6”; Thick. 0.125”, 0.25”
Bonding: Indium, Elastomer
Magnesium is a grey-white alkaline earth metal that has a melting point of 649°C, density of 1.74 g/cc, and vapor pressure of 10-4 Torr at 327°C. Despite being flammable, it is a versatile material that is extensively used in various industries. Magnesium is an essential element required for regulating nerve function, blood pressure, and nutrient levels in the human body, making it vital for life. Due to its lightweight and high strength-to-weight ratio, magnesium is widely employed in aircraft components, engine casings, laptops, cell phones, and cameras. Additionally, magnesium and its alloys are evaporated under vacuum conditions to produce magnetic and optical storage media, semiconductors, and other technological applications, highlighting its significance in various industries.
Material Type | Magnesium | Thermal Evaporation Techniques | Boat: W, Mo, Ta, Cb |
Symbol | Mg | Coil: W | |
Atomic Weight | 24.305 | Basket: W | |
Atomic Number | 12 | Crucible: Al2O3 | |
Appearance | Silvery White, Metallic | E-Beam Crucible Liner Material | FABMATE®, Graphite, Tungsten |
Thermal Conductivity | 160 W/m.K | Temp. (°C) for Given Vap. Press. (Torr) | 10-8: 185 |
Melting Point | 649 °C | 10-6: 247 | |
Coefficient of Thermal Expansion | 8.2 x 10-6/K | 10-4: 327 | |
Theoretical Density | 1.74 g/cc | UN Number | 1869 |
Z Ratio | 1.61 | Comments | Extremely high rates possible. |
E-Beam | Good |
|
Magnesium sputtering targets have a wide range of applications across various industries:
Our Magnesium Sputtering Targets are clearly labeled externally to ensure efficient identification and quality control. We take great care to prevent any damage during storage or transportation.
