MetalsTek Engineering is a trusted manufacturer and supplier of Tin Sputtering Targets. We can provide the targets in various materials, purities, shapes, sizes and prices.

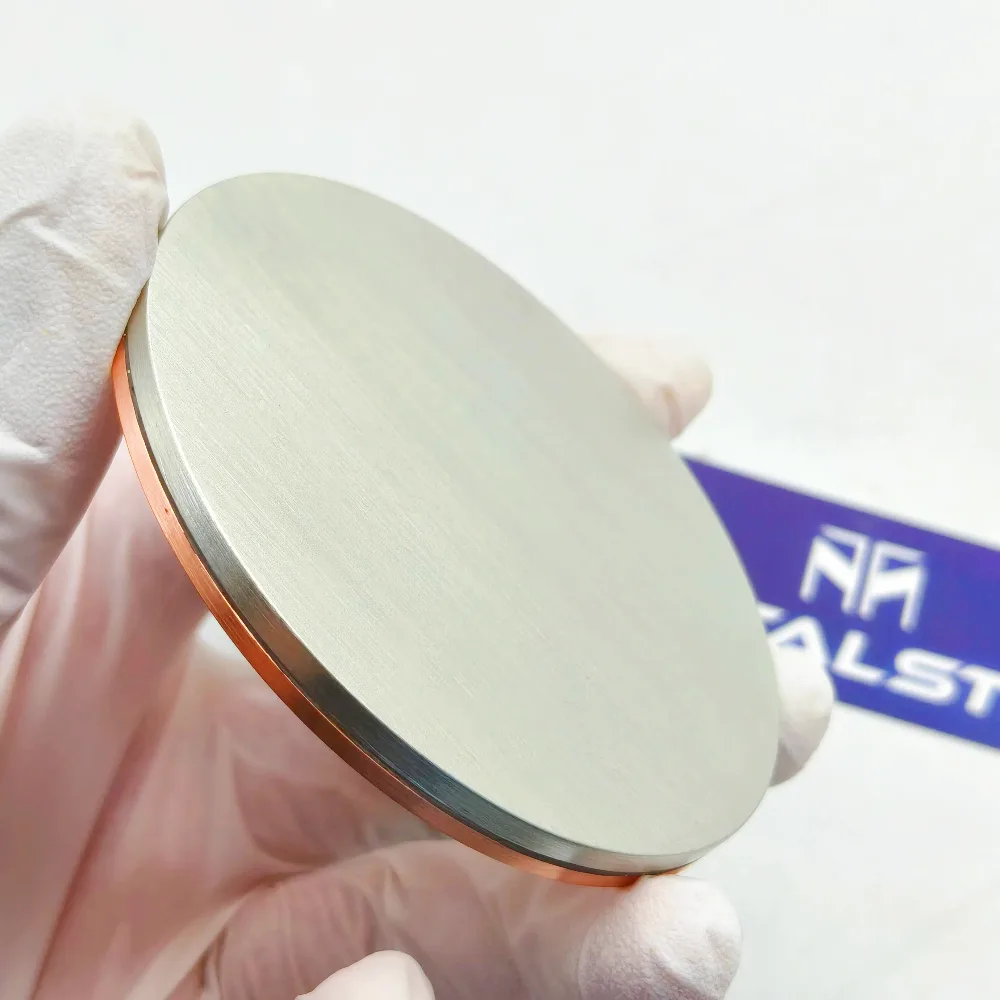

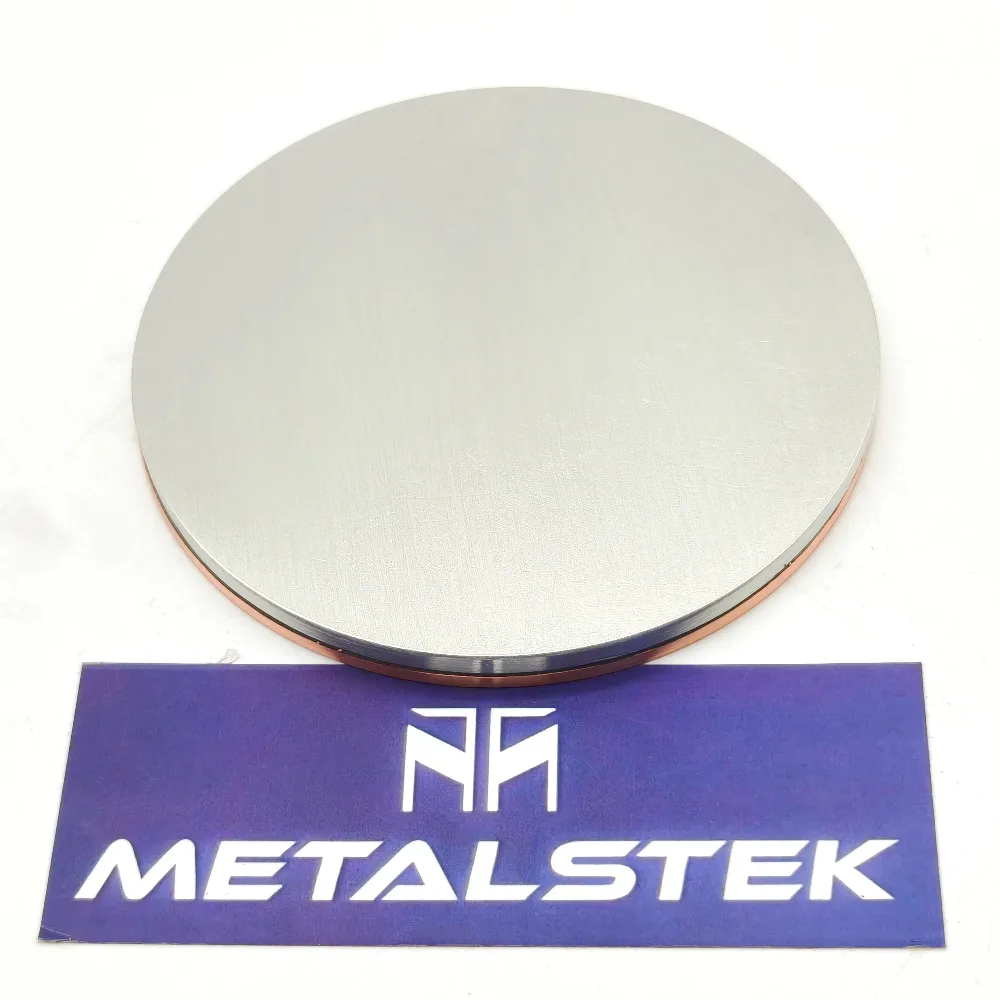

Material: Tin
Purity: 99.9%~99.999%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Applications: Semiconductor Deposition, CVD, PVD, Optics Coatings
Material: Gold Tin Alloy
Purity: 99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Applications: Semiconductor Deposition, CVD, PVD, Optics Coatings
Material: Copper Tin
Purity: 99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”

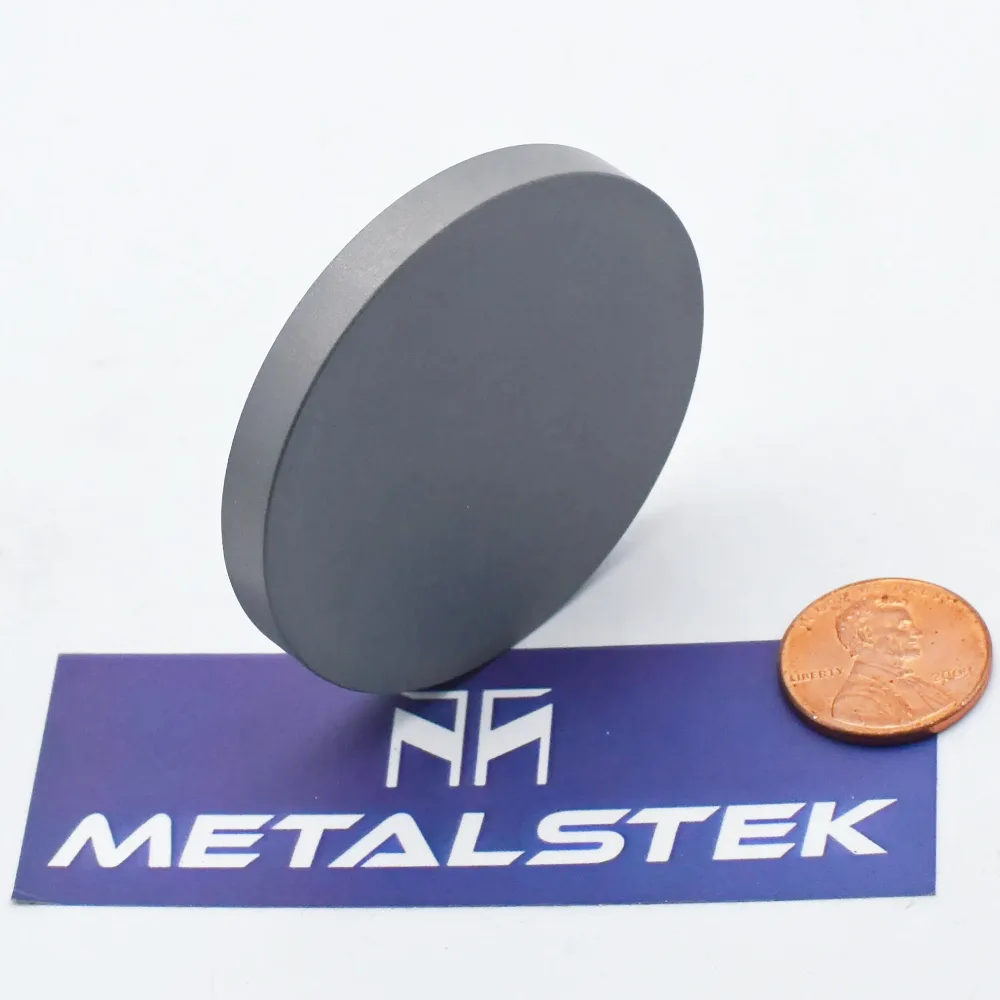

Material: Tin Indium Alloy
Purity: 99.99%, ≈117°C Melting Point
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Material: Tin Zinc Alloy
Purity: 99.9%~99.999%, Composition Can be Customized
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Material: Manganese Tin Alloy
Purity: 99.9%~99.999%, Composition Can be Customized
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Material: Tin Silver Alloy
Purity: 99.9%~99.999%, Composition Can be Customized
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Material: Antimony Indium Tin Alloy
Purity: 99%~99.999%, Composition Can be Customized
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Material: Antimony Indium Tin
Purity: 99.9%~99.999%,
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Bonding: Indium Recommended

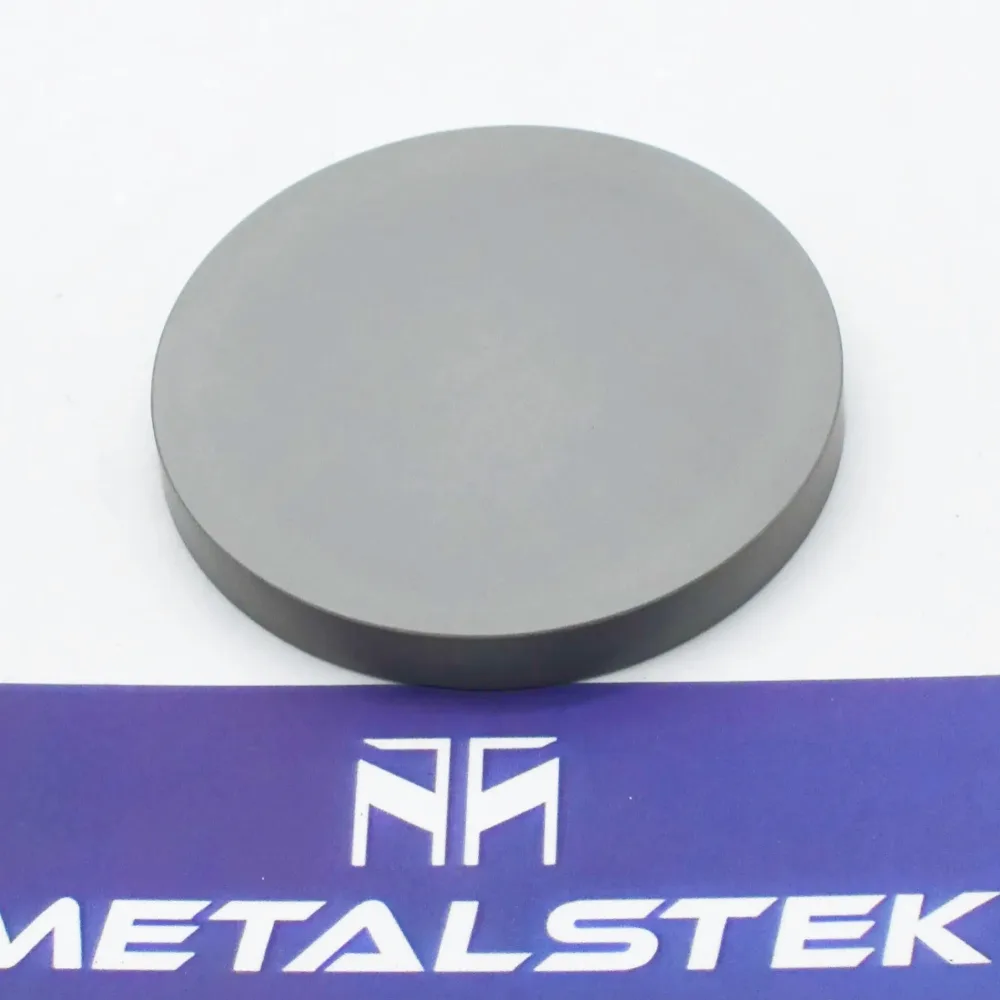

Material: Tin Oxide
Purity: 99.9%~99.999%
Properties: Light Yellow, 6.95g/cc Density, ≈1,630°C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Bonding: Elastomer Recommended

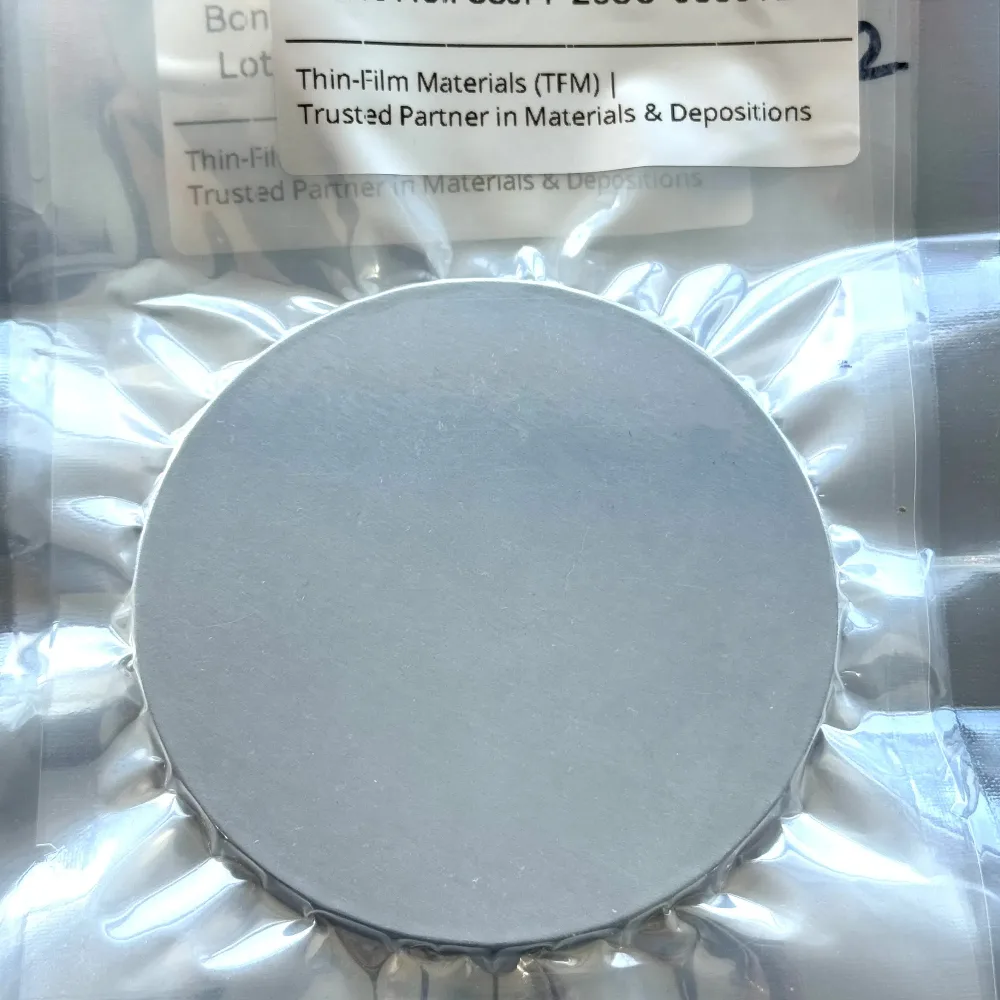

Material: Tin Sulfide
Purity: 99.9%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Bonding: Elastomer Recommended
Material: Indium Tin Oxide, In2O3/SnO2
Purity: 99.9%~99.99%
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Material: Tin Telluride
Purity: 99.9%~99.99%
Properties: 6.5g/cc Density, ≈790°C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Material: Tin Fluoride
Purity: 99.9%
Properties: 4.57g/cc Density, ≈213°C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Bonding: Elastomer Recommended
Material: Antimony Doped Tin Oxide
Purity: SnO2:Sb 99.9%~99.99%
Properties: 6.9g/cc Density, ≈1,720°C M.P.
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Bonding: Indium Recommended
Material: Niobium Stannide
Purity: 99.9%~99.999%, 5.7g/cc Density
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Material: Tin Arsenide
Purity: 99.9%~99.999%,
Shape: Discs, Plates, Column Targets, Step Targets, Custom-made
Sizes: Disc – Dia. 1”~14” * Thick 0.125” / 0.25”
Block – Thick≥1mm * Width ≤14” * Length≤32”
Bonding: Indium Recommended
Tin Sputtering Targets are essential materials used in sputtering, a phenomenon where particles of solid material are ejected from its surface when bombarded by energetic particles. Tin (Sn) Sputtering Targets, composed of the element with atomic number 50, are silvery, lustrous, gray, metallic materials with a thermal conductivity of 66.6 W/m.K and a melting point of 232°C. These targets are utilized in various applications such as soldering, plating, and alloy production like pewter. Tin Sputtering Targets play a crucial role in thin film deposition processes, enabling precise etching, analytical techniques, and the manufacture of optical coatings, semiconductor devices, and nanotechnology products.
Material Type | Tin | E-Beam | Excellent |
Symbol | Sn | Thermal Evaporation Techniques | Boat: Mo |
Atomic Weight | 118.71 | Coil: W | |
Atomic Number | 50 | Basket: W | |
Appearance | Silvery Lustrous Gray, Metallic | Crucible: Al2O3 | |
Thermal Conductivity | 66.6 W/m.K | E-Beam Crucible Liner Material | FABMATE®, Tantalum |
Melting Point | 232 °C | Temp. (°C) for Given Vap. Press. (Torr) | 10-8: 682 |
Coefficient of Thermal Expansion | 22 x 10-6/K | 10-6: 807 | |
Theoretical Density | 7.28 g/cc | 10-4: 997 | |
Z Ratio | 0.724 | Comments | Wets Mo low sputter power. Use Ta liner in E-beam guns. Low Melting Point materials not ideal for sputtering. |
Tin (Sn) and Tin-based Sputtering Targets have a wide range of applications across various industries due to their unique properties. Sputtering targets are materials used in the process of physical vapor deposition (PVD), where atoms or molecules are deposited onto a substrate surface to form a thin film. Here are some common applications of Tin and Tin-based Sputtering Targets:
The versatility and performance of Tin and Tin-based Sputtering Targets make them indispensable in numerous technological applications spanning electronics, optics, energy, and more.
Our Tin and Tin-based Sputtering Targets are clearly labeled externally to ensure efficient identification and quality control. We take great care to prevent any damage during storage or transportation.
